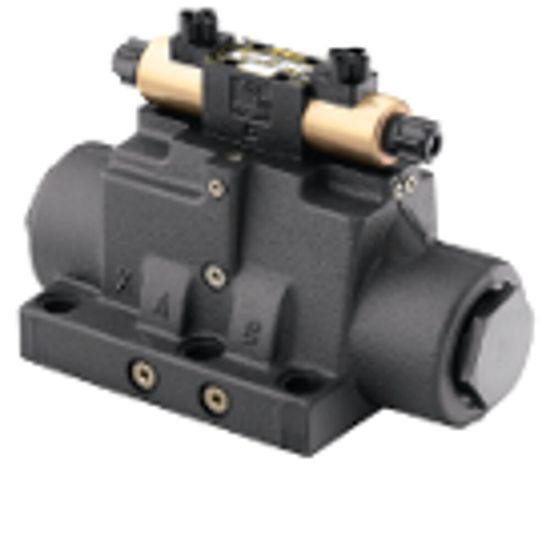

D101VW009C1NYCF - Pilot Operated, Solenoid Controlled, Directional Control Valve - D101VW Series

Parker’s D101V directional control valves are 5-chamber, pilot operated, solenoid controlled valves.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 45 days
Partner Available:	Backordered

SKU D101VW009C1NYCF

$5,390.28/each

Products specifications

Attribute name	Attribute value
UOM	EA	Size	NFPA 10; CETOP 10, NG32
Maximum Flow Rate	130 GPM	Maximum Operating Pressure	3000 PSI
Mounting Type	Subplate	Minimum Operating Temperature	-4 °F
Mounting Type	Subplate	Actuation Type	Solenoid
Weight	77.1	Maximum Operating Pressure	3000 psi
Body Material	Gray Iron	Valve Type	Pilot Operated Directional Control Valve
Division	Hydraulic Valve Systems Division	Additional Options	Consult catalog for additional features.
Maximum Operating Temperature	140 °F	Size	NG32
Seal Material	Nitrile	Maximum Flow Rate	130 Gal/min
