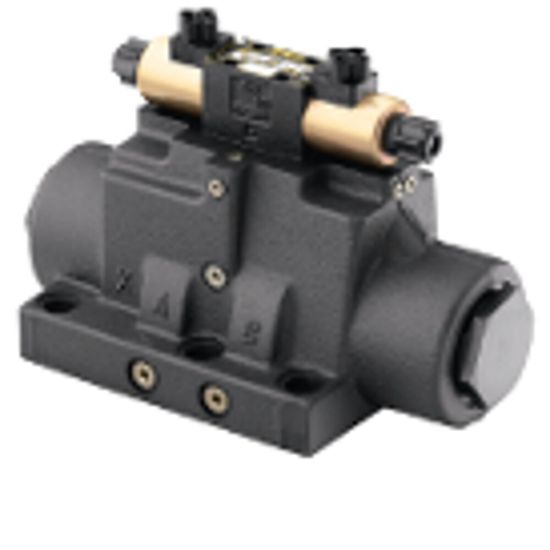

D101VW001C1VKG56 - Pilot Operated, Solenoid Controlled, Directional Control Valve - D101VW Series

Parker’s D101V directional control valves are 5-chamber, pilot operated, solenoid controlled valves.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 150 days
Partner Available:	Backordered

SKU D101VW001C1VKG56

$5,117.60/each

Products specifications

Attribute name	Attribute value
UOM	EA	Size	NFPA 10; CETOP 10, NG32
Maximum Operating Pressure	3000 PSI	Mounting Type	Subplate
Maximum Flow Rate	250 GPM	Minimum Operating Temperature	-4 °F
Mounting Type	Subplate	Maximum Operating Pressure	3000 psi
Weight	35 kg	Body Material	Gray Iron
Actuation Type	Solenoid	Additional Options	Consult catalog for additional features.
Maximum Flow Rate	250 Gal/min	Division	Hydraulic Valve Systems Division
Size	CETOP 10	Valve Type	Pilot Operated Directional Control Valve
Seal Material	Fluorocarbon	Maximum Operating Temperature	140 °F

Product resources

Literature and Reference Materials

Pilot Operated Directional Control Valve Catalog - D101VW Series (PDF)
