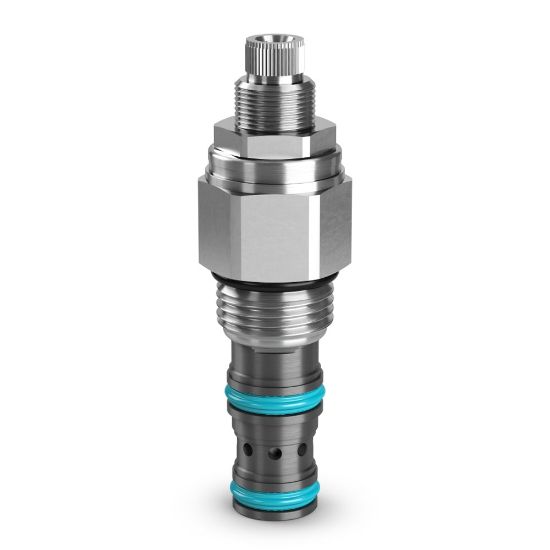

SVH081S30V - Pilot Operated Sequence Valves

Parker’s pilot operated sequence valves can be internally or externally piloted to allow multiple actuators to work in sequence based on pressure settings; working with flows up to 152 lpm (40 gpm) and pressures up to 380 bar (5500 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU SVH081S30V

$94.83/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Fluorocarbon
Pilot Option	Internal	Drain Option	External
Adjustment Type	Screw	Rated Flow (gpm)	12
Cracking Pressure (psi)	N/A	Pressure Range Adjustment (psi)	200-3000
Function	Pilot Operated Sequence	Port Size	N/A
Maximum Tank Pressure	5000 psi	Adjustment Mechanism	Screw
Cavity Size	C08-3	Cracking Pressure	N/A bar
Minimum Operating Temperature	-15 °F	Pressure Control Range	13.8-210 bar
Mounting Type	Threaded Cartridge Valve	Operating Temperature	-15 to +400 °F
Drain Option	External	Flow Rate	12 Gal/min
Pressure Control Sensitivity	59 per turn bar	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Maximum Operating Pressure	380 bar	Body Material	N/A
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Actuation Type	Pressure Sensing
Pilot Location	Internal	Weight	0.11 kg
Division	Hydraulic Systems Division	Installation Torque	32-36 lb-ft
Reseat Pressure	90% of set pressure	Maximum Drain Flow Rate	0.56 L/min
Standard Setting Pressure	103.5 bar	Maximum Flow Rate	45 L/min
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Division	Hydraulic Cartridge Systems Division
Maximum Inlet Pressure Rating	5500 psi	Valve Material	All parts steel. All operating parts hardened steel
Seal Material	Fluorocarbon	Maximum Operating Temperature	+400 °F
Leak Rate	82 @ 3000 PSI (210 BAR) cm3/min	Maximum Pressure Setting	3000 psi
