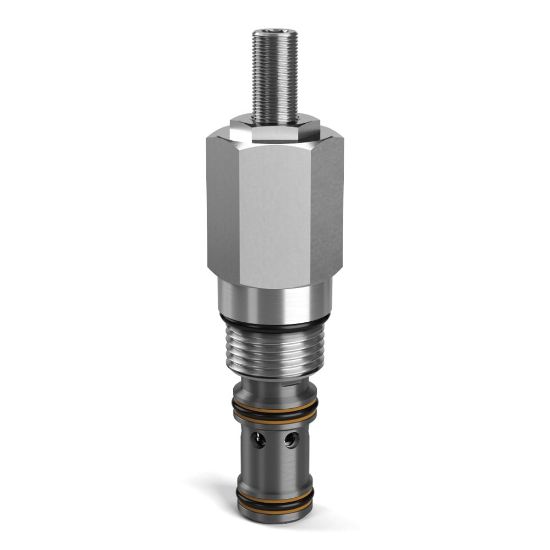

B04D3PZN - Pilot Operated Sequence Valve with Reverse Check

REGIONAL - Parker's pilot operated sequence valve with reverse check combines two functions into a single cartridge reducing space, components, and manifold complexity. Capable of flows up to 70 lpm (32 gpm) and pressures up to 420 bar (6000 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	Backordered

SKU B04D3PZN

$406.79/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Adjustment Mechanism	Screw	Pressure Control Range	145-6000 PSI, 10-420 BAR
Flow Rate	18.5 GAL/MIN, 70 L/MIN	Division	Hydraulic Cartridge Systems Division
Division	Mobile Hydraulic Systems Division Europe	Operating Temperature	-34 to 121 °C
Flow Rate	18.5 Gal/min	Actuation Type	Pressure Sensing
Maximum Flow Rate	70 L/min	Maximum Operating Pressure	420 bar
Maximum Operating Temperature	250 °F	Minimum Operating Temperature	-30 °F
Body Material	n/a	Seal Material	Nitrile
Weight	0.55 lb	Mounting Type	Screw-in Cartridge
Operation Type	Automatic	Filter Efficiency Rating	ISO 4406 18/16/13
Configuration	Reverse Flow Check	For Fluid Type	Synthetic Hydraulic Fluids
Function	Pilot Operated Sequence	Drain Option	External
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Leak Rate	50 drops/min @ 1450 Psi (100 bar)
Cavity Size	C10-3S	Pilot Location	Internal
Valve Material	Steel (all parts)	Installation Torque	37 lb-ft
Maximum Inlet Pressure Rating	6000 psi	Adjustment Mechanism	Screw
Maximum Pressure Setting	6000 psi	Maximum Tank Pressure	420 bar
Pressure Control Range	10 to 420 bar	Standard Setting Pressure	200 bar
Pressure Control Sensitivity	55 bar Per Turn
