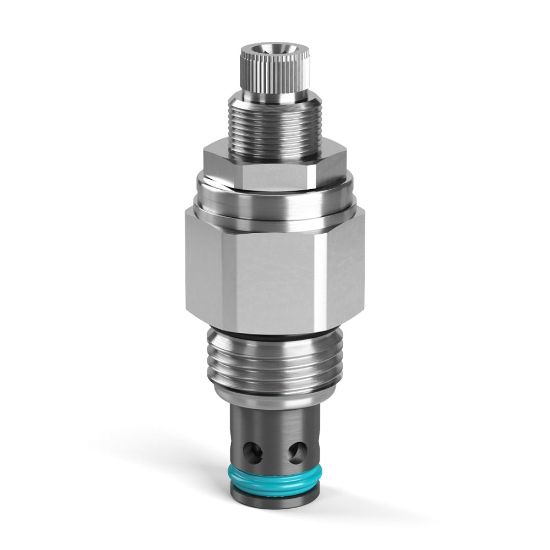

RAH081T30 - Pilot Operated Relief Valves

Parker’s pilot operated relief valves are designed for continuous duty applications featuring great stability with low pressure drop; working with pressures up to 420 bar (6000 psi) and flows up to 400 lpm (106 gpm).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU RAH081T30

$79.61/each

Products specifications

Attribute name	Attribute value
UOM	EA	Adjustment Mechanism	Tamper Resistant
Maximum Inlet Pressure Rating	5000 PSI, 350 BAR	Seal Material	D-Ring (Standard)
Pressure Control Range	200-3000 PSI, 13.8-210 BAR	Flow Rate	20 GAL/MIN, 75.8 L/MIN
Division	Hydraulic Cartridge Systems Division	Division	Hydraulic Systems Division
Operating Temperature	-37 to +93 °C	Flow Rate	75.8 L/min
Actuation Type	Pressure Sensing	Maximum Flow Rate	20 Gal/min
Maximum Operating Pressure	350 bar	Maximum Operating Temperature	+93 °C
Minimum Operating Temperature	-37 °C	Body Material	N/A
Seal Material	D-Ring (Standard)	Weight	0.09 kg
Mounting Type	Screw in cartridge valve	Operation Type	Automatic
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Configuration	Pressure Relief
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Function	Pilot Operated
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Leak Rate	5 per @ 100 psi (6.8 bar) setting cm3/min
Cavity Size	C08-2	Valve Material	All parts steel. All operating parts hardened steel
Installation Torque	43-49 Nm	Maximum Inlet Pressure Rating	350 bar
Adjustment Mechanism	Tamper Resistant	Maximum Pressure Setting	210 bar
Reseat Pressure	90% of pressure setting	Maximum Tank Pressure	350 bar
Pressure Control Range	200-3000 psi	Standard Setting Pressure	1500 psi
Pressure Control Sensitivity	58.9 per turn bar
