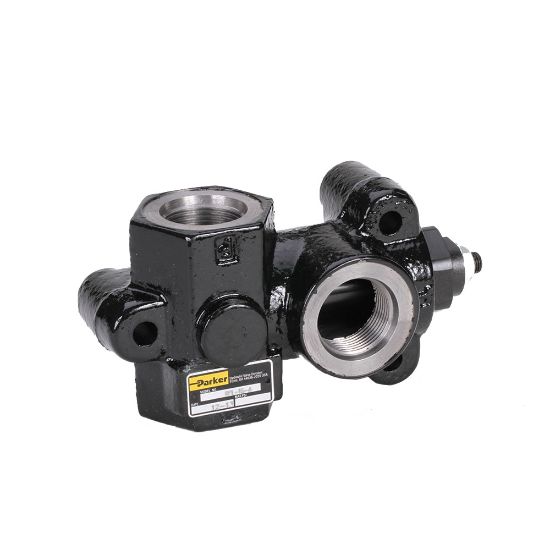

RPL-16-A - Pilot Operated Relief Valve - RPL Series

Parker’s RPL In-line Relief Valve rated at 60 GPM is designed for limiting the maximum pressure which can be applied to the portion of the hydraulic circuit where it is installed.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU RPL-16-A

$548.80/each

Products specifications

Attribute name	Attribute value
UOM	EA	Port Size	SAE-16
For Fluid Type	Hydraulic Oil	Division	Hydraulic Valve Systems Division
Maximum Flow Rate	60 Gal/min	Connection Type	SAE
Maximum Operating Temperature	+200 °F	Seal Material	Nitrile
Connection Size	#16	Adjustment Mechanism	Adjustable
Minimum Operating Temperature	-40 °F	Mounting Type	In-Line
Product Style	Pilot Operated Relief Valve	Pressure Control Range	Adjustable
Actuation Type	Hydraulic Pressure	Body Material	High Strength Cast Iron
Weight	6 lb	Maximum Operating Pressure	5000 psi
