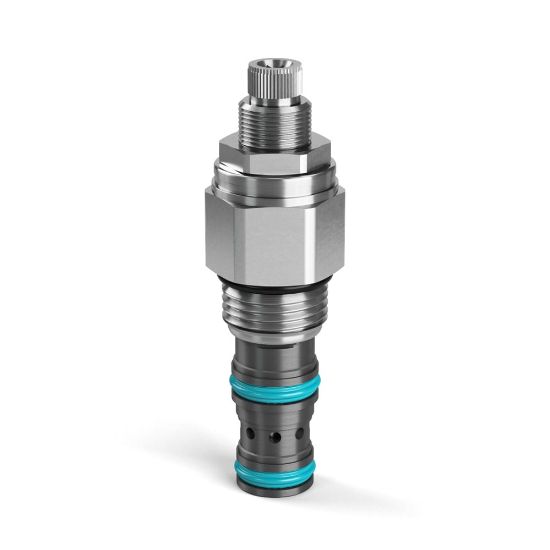

PRH082K30V - Pilot Operated Pressure Reducing Valves

Parker’s pilot operated pressure reducing valves are capable of flows up to 150 lpm (40 gpm) and regulating pressures up to 350 bar (5000 psi) and are commonly used for setting the pressure of a sub-circuit within a hydraulic system.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU PRH082K30V

$101.14/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Fluorocarbon
Adjustment Mechanism	Knob	Flow Rate	8 GAL/MIN, 30 L/MIN
Pressure Control Range	200-3000 PSI, 13.8-210 BAR	Function	Pilot Operated
Adjustment Mechanism	Knob	Cavity Size	C08-3
Minimum Operating Temperature	-15 °F	Maximum Operating Temperature	+400 °F
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Division	Hydraulic Cartridge Systems Division
Maximum Flow Rate	30 L/min	Maximum Tank Pressure	5000 psi
Maximum Inlet Pressure Rating	380 bar	Maximum Pressure Setting	3000 psi
Valve Material	All parts steel. All operating parts hardened steel.	Seal Material	Fluorocarbon
Body Material	N/A	Weight	0.25 lb
Maximum Operating Pressure	5000 psi	Installation Torque	43-49 Nm
Standard Setting Pressure	103.5 bar	Maximum Drain Flow Rate	0.56 L/min
Division	Hydraulic Systems Division	Operation Type	Automatic
Pressure Control Range	13.8-210 bar	Mounting Type	Screw in cartridge valve
Actuation Type	Pressure Sensing	Pressure Control Sensitivity	64.9 per turn bar
Flow Rate	30 L/min	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Operating Temperature	-26 to +204 °C
Configuration	Pressure Reducing
