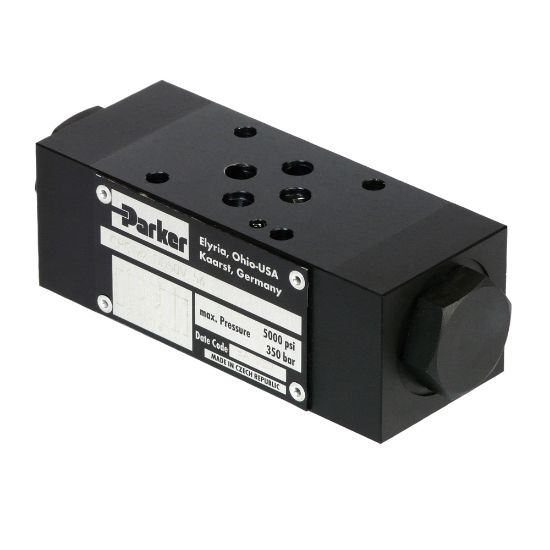

CPOM2DDV - Pilot Operated Check Valve - Series CPOM (N.A.)

Name: CPOM2DDV - Pilot Operated Check Valve - Series CPOM (N.A.)
SKU: CPOM2DDV
Price: 552.00 USD
Availability: LimitedAvailability

Parker's pilot operated check valves series CPOM in sandwich design ensure an easy configuration of stack systems and provide a very good price-performance ratio.

Manufacturer: Parker

Availability:

2 Limited Stock

Olivette, MO

Partner Available:

8 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU CPOM2DDV

$552.00/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Poppet Style	A & B ports
Connection Size	CETOP 03 (NG06)	Cracking Pressure	4.3 PSI (0.3 BAR)
Maximum Flow Rate	14 GAL/MIN (53 L/MIN)	Maximum Operating Pressure	5000 PSI (345 BAR)
Seal Material	Fluorocarbon	Maximum Flow Rate	14
Maximum Operating Temperature	158	Poppet Style	A & B ports
Connection Size	CETOP 03 (NG06)	Flow Direction	N/A
Cracking Pressure	4.3	Minimum Operating Temperature	-4
Mounting Type	Subplate	Product Series	Check valve
Opening Pressure Ratio	3:1	Actuation Type	Hydraulic Pressure
Maximum Operating Pressure	5000	Weight	1.7
Operation Type	Pilot	Division	Hydraulic Valve Systems Division
Body Material	Steel	Connection Type	N/A
Division	Hydraulic Valve Systems Division

Product resources

Literature and Reference Materials

MSG14-2500/US Industrial Hydraulic Valves (PDF)
