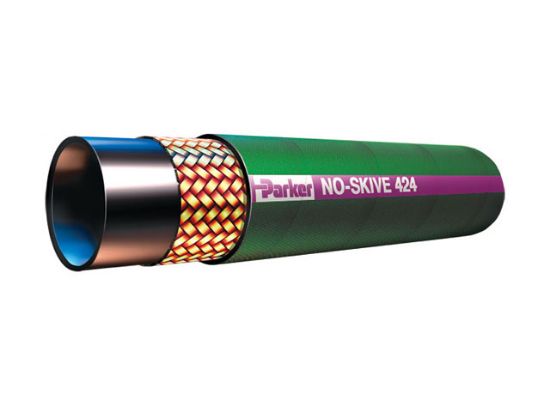

424-16 - Phosphate-Ester Hose 375-1000 PSI - 424 Hose

Name: 424-16 - Phosphate-Ester Hose 375-1000 PSI - 424 Hose
SKU: 424-16
Price: 42.84 USD
Availability: InStock

Parker's 424 hose is a phosphate-ester compatible hose that has a pressure range of 375-1000 PSI and is specifically designed to resist aggressive airline hydraulic fluids.

Availability:

94 in stock

Wichita, KS

Partner Available:

54 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 424-16

$42.84/foot

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-16
Minimum Operating Temperature	-40 °F	Minimum Bend Radius	300 mm
Hose Reinforcement Material	1 Braid of Steel Wire	Specifications Met	n/a
Application	Phosphate Ester	Nominal Hose Inside Diameter	25 mm
Inside Diameter	1 inch	Maximum Operating Pressure	6.9 MPa
Outside Diameter	36 mm	Weight	0.94 kg/m
Cover Color	Green	Division	Hose Products Division
Compatible Fitting	43 Series	Maximum Operating Temperature	176 °F
Hose Inner Tube Material	Ethylene Propylene Diene Monomer (EPDM)	Media	Petroleum Hydraulic Fluids
Cover Material	Ethylene Propylene Diene Monomer (EPDM)	UOM	FT
Inner Diameter	1 Inch	Material	Rubber
Working Pressure	1000 PSI (70 bar)	Pkg Qty/UOM	135 FT
Pkg Qty	135	Parker Group	Fluid Connector
Inch/Metric	Inch	Parker Division	Hose Products
Inner Diameter	1 Inch	Inner Diameter Inch/mm	Inch
Material	Rubber	Working Pressure Range	1000 to 1999 PSI (69 to 138 bar)
Application	Hydraulic Phosphate Ester	Hose Pressure Range	Medium
Hose Category	Hydraulic – Phosphate-Ester	Series	424
