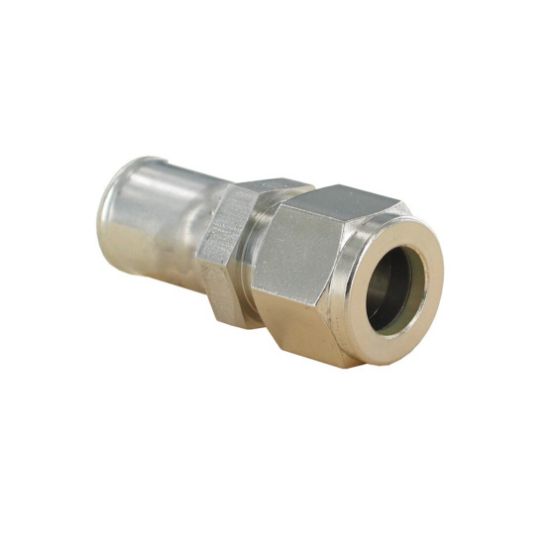

1AL91N-4-4NC - Permanent Fittings for PTFE Hose - 91/91N

Parker's 91/91N Series fittings are used with 919/919B, 919J, 919U, 929/929B, and 929BJ PTFE hoses from the Parflex division.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 7 days
Partner Available:	Backordered

SKU 1AL91N-4-4NC

Products specifications

Attribute name	Attribute value
UOM	EA	Hose I.D. (inch)	3/16"
Length (inch)	1.3"	Product Style	Female A-Lok® Compression W/o Nut-ferrule
Division	Parflex Division	Connection 2 Size	n/a
For Fluid Type	Hydraulic Fluids	Industry	Transportation
Division	Parflex Division	Product Type	Hose Fittings
Technology	Fluid & Gas Handling	Coating	n/a
Connection Length	7/16 inch Cut-off allowance (see drawing legend B)	Brand	Parker
Tube Outside Diameter	n/a	Specifications Met	n/a
Application	Semiconductor	Hex Size	1/2 inch (see drawing legend J)
Connection 1 Size	-4 (Size)	Connection 2 Type	Female
Hex Size 1	9/16 inch (see drawing legend H)	Maximum Operating Pressure	3000 psi (Dependent on hose)
Fitting Length	1.28 inch (see drawing legend A)	Body Material	n/a
Shape	Straight	Configuration	Hose to Port
Dimensional Weight	0.0264	Product Series	91N
Connection 1 Type	Hose
