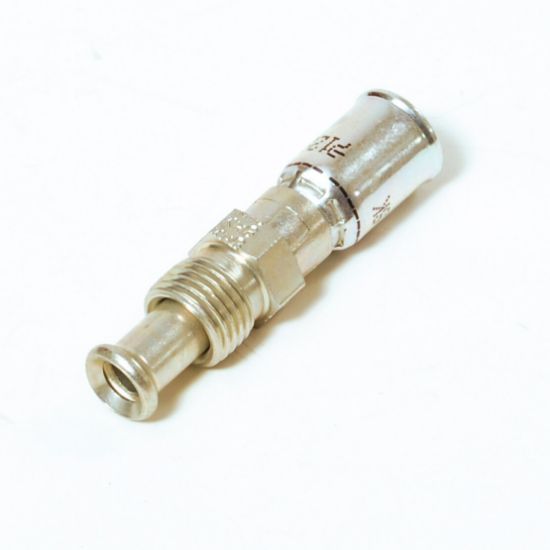

12891N-5-5 - Permanent Fittings for PTFE Hose - 91/91N

Parker's 91/91N Series fittings are used with 919/919B, 919J, 919U, 929/929B, and 929BJ PTFE hoses from the Parflex division.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	5 in stock

SKU 12891N-5-5

$39.47/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Hose I.D. (inch)	0.25"
Length (inch)	2.15"	Connection 2 Size	1/2"-20
Product Style	Female NPSM Pipe - Swivel - Straight (60° Cone)	Connection 1 Type	Hose
Configuration	Hose to Port	Maximum Operating Pressure	20.7 MPa
Division	Parflex Division	Shape	Straight
Body Material	Steel	Fitting Length	2.15 inch (see drawing legend A)
For Fluid Type	Water	Division	Parflex Division
Industry	General Industrial	Connection Length	1-9/16 inch Cut-off allowance (see drawing legend B)
Coating	Chromium 6 Free-plated	Connection 2 Size	1/2"-20 inch Thread
Product Type	Hose Fittings	Technology	Fluid & Gas Handling
Connection 1 Size	6.35 mm	Hex Size 1	n/a
Connection 2 Type	Swivel	Hex Size	1/2 inch (see drawing legend J)
Brand	Parker	Tube Outside Diameter	n/a
Application	Semiconductor	Dimensional Weight	0.0529 lb
Product Series	91N	Specifications Met	n/a
