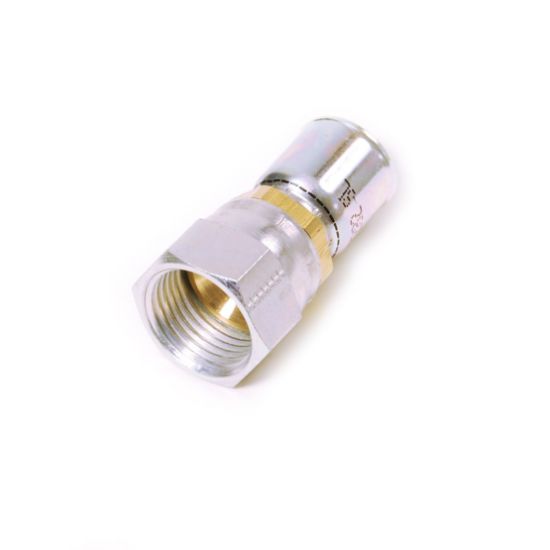

10691N-6-8 - Permanent Fittings for PTFE Hose - 91/91N

Name: 10691N-6-8 - Permanent Fittings for PTFE Hose - 91/91N
SKU: 10691N-6-8
Price: 36.81 USD
Availability: InStock

Parker's 91/91N Series fittings are used with 919/919B, 919J, 919U, 929/929B, and 929BJ PTFE hoses from the Parflex division.

Manufacturer: Parker

Availability:

98 in stock

Olivette, MO	87
COLUMBIA, MO	10
TOPEKA, KS	1

Partner Available:

127 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 10691N-6-8

$36.81/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Length (inch)	1.69"
Product Style	Female JIC 37° - Swivel - Straight	Hose I.D. (inch)	0.406"
Connection 2 Size	9/16"-18	Division	Parflex Division
For Fluid Type	Water	Connection 2 Size	9/16"-18 inch Thread
Coating	Chromium 6 Free-plated	Connection Length	1 inch Cut-off allowance (see drawing legend B)
Technology	Fluid & Gas Handling	Product Type	Hose Fittings
Hex Size	9/16 inch (see drawing legend J)	Connection 1 Size	10.3 mm
Connection 2 Type	Female	Specifications Met	n/a
Tube Outside Diameter	n/a	Brand	Parker
Hex Size 1	11/16 inch (see drawing legend H)	Product Series	91N
Dimensional Weight	0.0235 lb	Configuration	Hose to Port
Application	Ultra High Purity	Fitting Length	1.72 inch (see drawing legend A)
Maximum Operating Pressure	207 bar	Connection 1 Type	Hose
Body Material	Brass (Nipple)	Industry	Healthcare & Life Sciences
Shape	Straight	Division	Parflex Division
