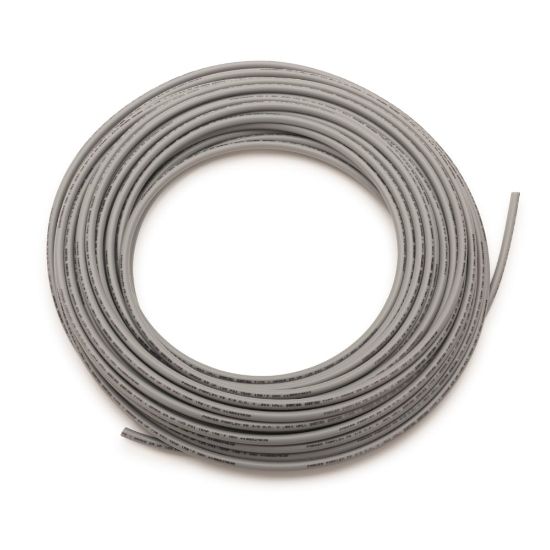

E-64-GRA-0500 - PE Tubing

Polyethylene Tubing - E/EB Series Tubing is instrument grade tubing, made from 100% virgin Linear Low Density Polyethylene (LLDPE). Ideal for water, food, beverages and food grade applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	559 in stock

SKU E-64-GRA-0500

$0.76/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Color	Gray
Standard Pack Qty (ft)	500	Nominal Outside Diameter	3/8 inch
Product Type	Fractional, Instr. Grade	Weight	0.025 lb/ft
Maximum Operating Pressure	8.6 bar	Cover Color	n/a
Specifications Met	ASTM D1248	Minimum Operating Temperature	-62 °C
Tube Outside Diameter	9.5 mm	Minimum Bend Radius	1-1/4 inch
Minimum Burst Pressure	500 psi	Application	Fluid Transfer
Media	Water	Product Type	Fractional
Tube Material	Polyethylene (PE)	Color	Gray
Cover Material	n/a	Tube Inside Diameter	6.4 mm
Division	Parflex Division	Size	3/8 inch
Length per Package	152 m	Compatible Fitting	TrueSeal™
Maximum Operating Temperature	150 °F
