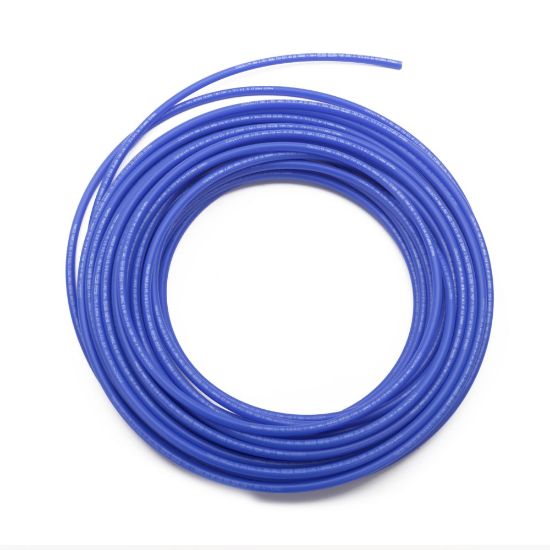

E-64-B-0100 - PE Tubing

Name: E-64-B-0100 - PE Tubing
SKU: E-64-B-0100
Price: 0.60 USD
Availability: InStock

Polyethylene Tubing - E/EB Series Tubing is instrument grade tubing, made from 100% virgin Linear Low Density Polyethylene (LLDPE). Ideal for water, food, beverages and food grade applications.

Manufacturer: Parker

Availability:

13 in stock

Springfield, MO

Partner Available:

3472 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU E-64-B-0100

$0.60/foot

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Nominal Outside Diameter	3/8 inch
Color	Blue	Product Type	Fractional, Instr. Grade
Standard Pack Qty (ft)	100 ft box	Division	Parflex Division
Size	3/8 inch	Length per Package	30 m Box
Maximum Operating Temperature	66 °C	Compatible Fitting	Compress-Align®
Tube Material	Polyethylene (PE)	Cover Color	n/a
Weight	0.037 kg/m	Minimum Burst Pressure	500 psi
Application	Fluid Transfer	Specifications Met	ASTM D1693
Tube Outside Diameter	9.5 mm	Maximum Operating Pressure	0.86 MPa
Media	Air	Product Type	Instr. Grade
Color	Blue	Tube Inside Diameter	6.4 mm
Minimum Operating Temperature	-62 °C	Minimum Bend Radius	31.8 mm
Cover Material	n/a
