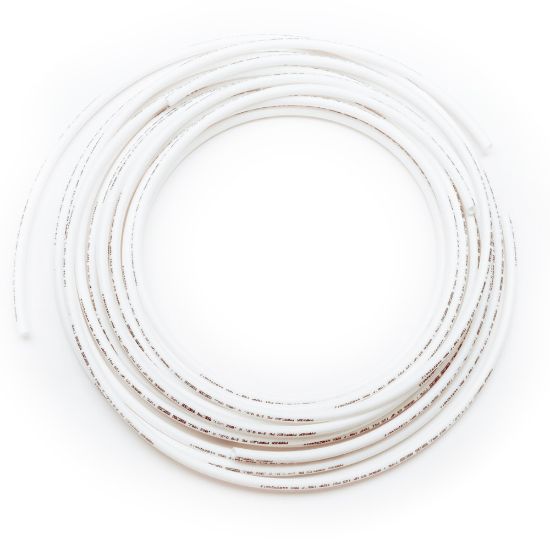

E-43-WHT-0500 - PE Tubing

Polyethylene Tubing - E/EB Series Tubing is instrument grade tubing, made from 100% virgin Linear Low Density Polyethylene (LLDPE). Ideal for water, food, beverages and food grade applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	873 in stock

SKU E-43-WHT-0500

$0.46/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Nominal Outside Diameter	1/4 inch
Standard Pack Qty (ft)	500	Product Type	Fractional, Instr. Grade
Color	White	Product Type	Instr. Grade
Tube Material	Polyethylene (PE)	Media	Water (Potable Water)
Tube Inside Diameter	4.3 mm	Minimum Bend Radius	25 mm
Cover Material	n/a	Minimum Operating Temperature	-80 °F
Color	White	Size	1/4 inch
Length per Package	152 m	Division	Parflex Division
Maximum Operating Temperature	150 °F	Compatible Fitting	Poly-Tite
Maximum Operating Pressure	8.3 bar	Weight	0.011 lb/ft
Cover Color	n/a	Application	Pneumatics
Tube Outside Diameter	6.4 mm	Specifications Met	NSF 61
Minimum Burst Pressure	480 psi
