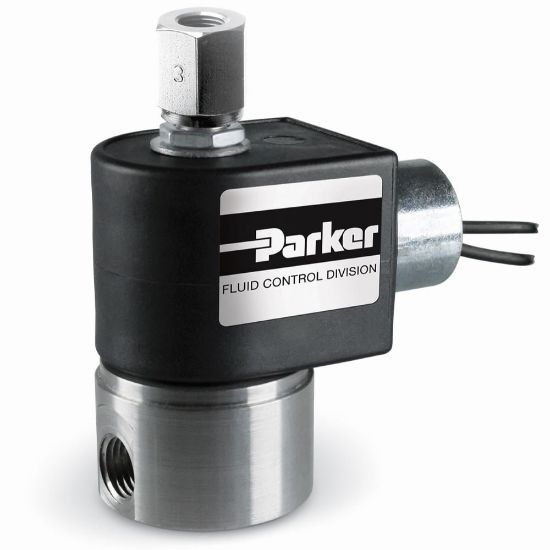

71335SN2KNJ1N0C111P3 - Parker 3-Way Multi-Purpose, 1/4" NPT General Purpose Solenoid Valves

Parker 3-Way Multi-Purpose, 1/4" NPT Solenoid Valves provide operating pressures up to 400 psi and flow factors up to 0.31 CV's. They offer stainless steel or brass bodies and various coil options for all general purpose flow control applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	1 Limited Stock

SKU 71335SN2KNJ1N0C111P3

$272.70/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Coil Type	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
Voltage (V)	110/50-120/60	Seal Material	NBR
Power (Watts)	10 Watt (AC)	Orifice Main (inch)	3/32
Mechanical Option	Exhaust Adapter Nut	Flow Factor Main (Cv)	0.17
Body Material	430F Stainless	Maximum Pressure Differential (psi)	80 psi (AC)
Input Voltage	110/50-120/60	Power Consumption	10 W (AC)
Maximum Fluid Temperature	185 °F	Function	Multipurpose
Media	General Purpose for Air	Port Size	1/4 inch
Orifice 2 Size	n/a	Port Type	NPT
Product Series	7000 Series	Actuation Type	Direct Acting
Maximum Pressure Differential	80 psi (AC)	Main Orifice Size	3/32 inch
Exhaust Flow Coefficient	0.17 Cv	Additional Options	Exhaust Adapter Nut
Minimum Fluid Temperature	0 °F	Body Material	Stainless Steel 430 F
Flow Coefficient 2	n/a	Exhaust Orifice Size	3/32 inch
Seal Material	NBR	Main Flow Coefficient	0.17 Cv
Coil Specifications Met	NEMA 4X	Minimum Pressure Differential	0 psi
Division	Fluid Control Division	Coil Type	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
Number of Ports	3	Valve Type	3-Way
