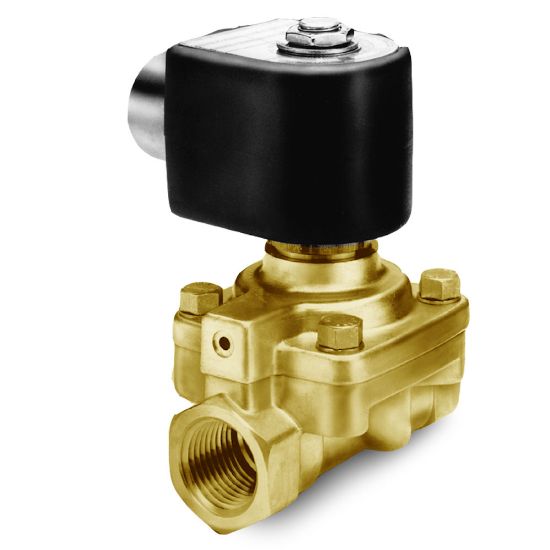

7321GBN99N00N0C111C2 - Parker 2-Way Normally Closed, 2" NPT General Purpose Solenoid Valves

Parker 2-Way Normally Closed, 2" NPT Solenoid Valves provide pressures up to 230 PSI and flow factors of 38.6 CV's. They have brass bodies, multiple mounting positions and Class F or H and NEMA 4X, 7 or 9 coils for general purpose flow applications.

Manufacturer: Parker

Availability:	Backordered
Partner Available:	Backordered

SKU 7321GBN99N00N0C111C2

$1,038.18/each

Products specifications

Attribute name	Attribute value
UOM	EA	Coil Type	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
Voltage (V)	24 VDC	Maximum Pressure Differential (psi)	200 psi (DC)
Power (Watts)	10 Watt (DC)	Seal Material	NBR
Minimum Pressure Differential	5 psi	Coil Specifications Met	NEMA 4X
Valve Type	2-Way	Number of Ports	2
Division	Fluid Control Division	Coil Type	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
Port Size	2 inch	Power Consumption	10 W (DC)
Orifice 1 Size	1-9/16 inch	Input Voltage	24.0 VDC
Flow Coefficient 1	38.6 Cv	Function	Normally Closed (NC)
Media	Liquids and Gases	Product Series	7000 Series
Port Type	NPT	Maximum Fluid Temperature	185 °F
Body Material	Brass	Actuation Type	Pilot
Flow Coefficient 2	n/a	Maximum Pressure Differential	200 psi (DC)
Orifice 2 Size	n/a	Minimum Fluid Temperature	0 °F
