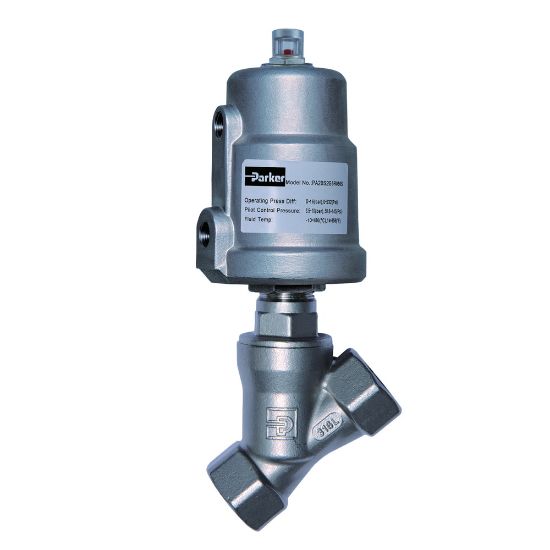

PA10SAN3R050S - PA Series Angle Seat Valves

Name: PA10SAN3R050S - PA Series Angle Seat Valves
SKU: PA10SAN3R050S
Price: 446.81 USD
Availability: InStock

2-way pneumatically-actuated Angle Seat Valves (ASV) available in on/off and proportional control models. Optional position feedback technologies are also available.

Manufacturer: Parker

Availability:

3 in stock

Kansas City, KS

Partner Available:

Backordered

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU PA10SAN3R050S

$446.81/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Port Size	3/8 inch
Function	2-Way	Body Material	316L Stainless Steel
Configuration	Normally Closed - Under Seat Anti-Waterhammer	Maximum Steam Pressure	N/A
Minimum Pilot Pressure	65.3 psi	Actuator Housing Material	304 Stainless Steel
Maximum Operating Pressure	232 psi	Division	Fluid Control Division
Brand	Parker	Division	Fluid Control Division
Technology	Process Control	Product Type	Angle Valve
Actuation Type	Air Pilot	Maximum Operating Pressure	232.0 psi
Maximum Operating Temperature	140 °F	Body Material	316L Stainless Steel
Seal Material	PTFE	Specifications Met	European Pressure Equipmemt Directive 2014/68/EU in accordance with Annex II, Category II, Group 2, Module A1
Product Style	Pneumatic - On/Off	Flow Coefficient	5.5 Cv
Connection Size	3/8 inch	Materials of Construction	304 Stainless Steel (Actuator Housing)
Connection Type	NPT	Configuration	Normally Closed - Under Seat Anti-Waterhammer
For Fluid Type	Air	Function	2-Way
Maximum Fluid Temperature	356 °F	Orifice Size	0.51
Minimum Operating Pressure	0 psi	Signal Input	n/a
Maximum Pilot Pressure	145 psi	Minimum Pilot Pressure	65.3 psi
Actuator Size	50 mm
