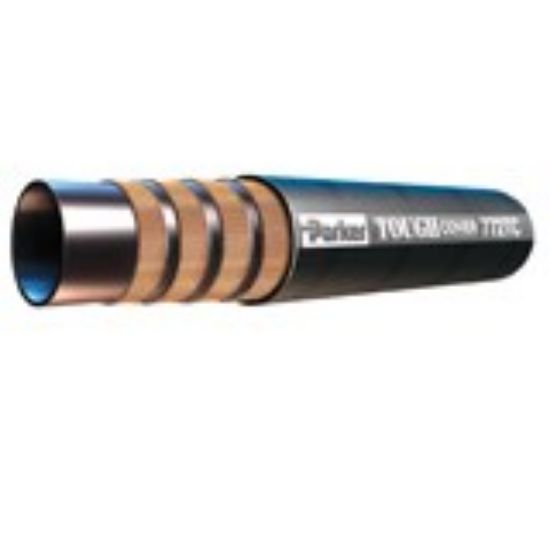

772TC-8 - OBSOLETE: Hydraulic Industry Standard Hose 2500-4000 PSI – 772 Hose

This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	65 in stock

SKU 772TC-8

$18.38/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-8
Hose Cover Type	ToughCover	Division	Hose Products Division
Application	Petroleum Base Hydraulic Fluids	Media	Lubricants
Maximum Operating Pressure	4000 psi	Maximum Operating Temperature	125 °C
Minimum Operating Temperature	-40 °C	Specifications Met	SAE J1942
Weight	0.93 kg/m	Outside Diameter	0.940 inch
Cover Material	Synthetic Rubber Abrasion Resistant	Inside Diameter	12.5 mm
Compatible Fitting	71 Series	Minimum Bend Radius	7 inch
Hose Inner Tube Material	Synthetic Rubber	Hose Reinforcement Material	4 Spirals of Steel Wire
Nominal Hose Inside Diameter	12 mm

Product resources

Literature and Reference Materials

Obsolescence Notification 06142018 (PDF)
