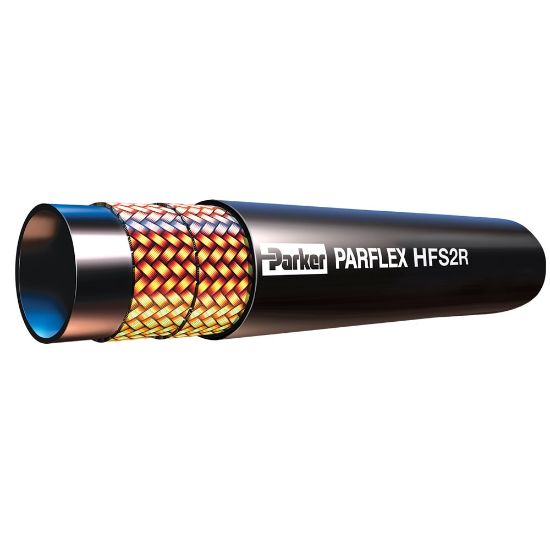

HFS2R08-500 - OBSOLETE: HFS2R Rubber-Covered Hydraulic Hose

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 7 days
Partner Available:	2845 in stock

SKU HFS2R08-500

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1/2
Application	Agriculture Equipment	Specifications Met	MSHA
Hose Reinforcement Material	1 or 2 Braids of High Tensile Steel Wire	Outside Diameter	0.760 inch
Maximum Operating Pressure	245 bar	Inside Diameter	1/2 inch
Weight	0.38 kg/m	Compatible Fitting	56 Series
Maximum Operating Temperature	100 °C	Size	-8
Division	Parflex Division	Hose Inner Tube Material	Copolyester
Design Factor	4:1	Product Type	Hydraulic Hose
Media	Petroleum Hydraulic Fluids	Cover Material	Synthetic Rubber
Cover Structure	Smooth	Minimum Bend Radius	89 mm
Minimum Operating Temperature	-40 °C
