Nylon Tubing

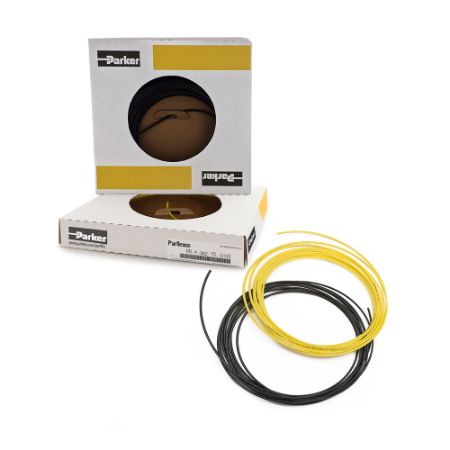

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Flexible Nylon Tubing uses high-grade polyamide resins for strength and flexibility for routing in tight spaces. It is made from abrasion-resistant, heat and light-stabilized nylon that is available in natural or black tubing. The black tubing is suggested for use in sunlit areas and in close proximity to high ultraviolet (UV) light sources. Nylon plastic tubing exhibits a low-level water absorption and is chemically resistant, making it the optimal solution for machine tool and industrial pneumatic applications, such as robotics, lubrication, petroleum-based chemical transfer and pest control lines. Parflex Nylon Tubing is available in fractional inch and metric sizes.

Markets:
• Robotics< br/>• Automation< br/>• Industrial Pneumatics
• Machine Tool
• Lubrication
• Petroleum based chemical transer
• Pest Control< br/>• Fluid Handling

Features/Benefits:
• Flexible nylon tubing uses high-grade resins for strength and flexibility for routing in tight spaces
• Made from abrasion-resistant, heat and light-stabilized polyamide resin
• Exhibits low-level water absorption
• Chemically resistant tubing

Applications:
• Robotics
• Machine tool
• General pneumatics
• Lubrication
• Petroleum-based chemical transfer
• Pest control lines

Technical Specifications:
• Working and burst pressures rated at 73°F (23°C
• A tube support should be used with this tubing for maximum holding power where end loading, vibration or pressure spikes may occur
• The recommended operating temperature range for service at rated pressures with compatible fluids, depending upon conditions, is -54°C to +93°C (-65°F to +200°F)
• Black UV resistant tubing suggested for use in sunlit areas and in close proximity to high ultraviolet light sources
• Select sizes available in 100 ft boxes

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	Color	Order Size	Standard Pack Qty (ft)	Minimum Bend Radius	Minimum Burst Pressure	Application	Minimum Operating Temperature	Specifications Met	Tube Outside Diameter	Weight	Maximum Operating Pressure	Maximum Operating Temperature	Compatible Fitting	Division	Size	Length per Package	Cover Material	Color	Tube Inside Diameter	Media	Tube Material
NN-4-035-0100	50 in stock	104 in stock	$1.03/foot	FT	Natural	1/4	100 ft box	22.4 mm	1000 psi	Robotics	-54 °C	n/a	1/4 inch	0.016 kg/m	17.2 bar	93 °C	TrueSeal™	Parflex Division	-4	34.8 m Box	n/a	Natural	0.180 inch	Lubricants	Polyamide (PA)
NN-4-035-EZ	Backordered	90 in stock	POR	FT	Natural	1/4	OBSOLETE 100 ft box	22.4	69	Fluid Transfer	-54	n/a	6.4	0.011	250	200	Compression	Parflex Division	-4	100 ft Box	n/a	Natural	0.180	Air	Polyamide (PA)
NN-4-040	1 Limited Stock	4150 in stock	$1.03/foot	FT	Natural	1/4	250	22.4 mm	86.2 bar	Fluid Transfer	-54 °C	n/a	6.4 mm	0.012 lb/ft	21.4 bar	93 °C	Compression	Parflex Division	-4	76.2 m	n/a	Natural	0.170 inch	Chemicals	Polyamide (PA)
NN-4-040-0100	Backordered	571 in stock	$1.34/foot	FT	Natural	1/4	100 ft box	22.4 mm	1250 psi	Machine Tools	-65 °F	n/a	6.4 mm	0.012 lb/ft	21.4 bar	93 °C	TrueSeal™	Parflex Division	-4	100 ft Box	n/a	Natural	4.3 mm	Air	Polyamide (PA)
NN-4-040-EZ	Backordered	275 in stock	POR	FT	Natural	1/4	OBSOLETE 100 ft box	22.4	86.2	Fluid Transfer	-54	n/a	6.4	0.012	310	200	Compression	Parflex Division	-4	100 ft Box	n/a	Natural	0.170	Air	Polyamide (PA)
NN-4-062	254 in stock	3769 in stock	$1.39/foot	FT	Natural	1/4	250	12.7 mm	137.9 bar	Fluid Transfer	-54 °C	n/a	6.4 mm	0.025 kg/m	500 psi	200 °F	Compression	Parflex Division	-4	76.2 m	n/a	Natural	0.127 inch	Mild Chemicals (Pesticides)	Polyamide (PA)
NN4X.65	874 in stock	6370 in stock	$0.74/foot	FT	Natural	4MM	100	14 mm	1200 psi	Fluid Transfer	-65 °F	n/a	4 mm	0.007 kg/m	20.7 bar	93 °C	Compression	Parflex Division	4 mm	100 ft	n/a	Natural	2.7 mm	Lubricants	Polyamide (PA)
NN-5-040	1891 in stock	6838 in stock	$1.47/foot	FT	Natural	5/16	250	1.13 inch	69 bar	Robotics	-65 °F	n/a	5/16 inch	0.016 lb/ft	250 psi	200 °F	NTA®	Parflex Division	-8	76.2 m	n/a	Natural	5.9 mm	Mild Chemicals (Pesticides)	Polyamide (PA)
NN-6-050	916 in stock	15206 in stock	$1.98/foot	FT	Natural	3/8	250	28.7 mm	69 bar	Pneumatics	-54 °C	n/a	3/8 inch	0.023 lb/ft	250 psi	200 °F	Prestolok®	Parflex Division	-6	76.2 m	n/a	Natural	7 mm	Mild Chemicals (Pesticides)	Polyamide (PA)
NN-6-050-0100	Backordered	279 in stock	$2.57/foot	FT	Natural	3/8	100 ft box	28.7 mm	69 bar	Machine Tools	-54 °C	n/a	3/8 inch	0.023 lb/ft	250 psi	200 °F	Fast & Tite®	Parflex Division	-6	34.8 m Box	n/a	Natural	0.275 inch	Hydraulic Fluids	Polyamide (PA)
NN-6-050-EZ	Backordered	371 in stock	POR	FT	Natural	3/8	OBSOLETE 100 ft box	28.7	69	Fluid Transfer	-54	n/a	9.5	0.023	250	200	Compression	Parflex Division	-6	100 ft Box	n/a	Natural	0.275	Air	Polyamide (PA)
NN-6-093	161 in stock	1530 in stock	$2.75/foot	FT	Natural	3/8	250	19 mm	2000 psi	Pneumatics	-54 °C	n/a	3/8 inch	0.057 kg/m	500 psi	200 °F	Compress-Align®	Parflex Division	-6	250 ft	n/a	Natural	0.190 inch	Water	Polyamide (PA)
NN6X1	804 in stock	8043 in stock	$1.47/foot	FT	Natural	6MM	100	0.866 inch	1363 psi	Robotics	-65 °F	n/a	0.236220 inch	0.011 lb/ft	341 psi	200 °F	Compression	Parflex Division	6 mm	100 ft	n/a	Natural	4 mm	Air	Polyamide (PA)
NN-8-062	1205 in stock	20746 in stock	$3.07/foot	FT	Natural	1/2	250	31.8 mm	69 bar	Fluid Transfer	-54 °C	n/a	12.7 mm	0.058 kg/m	250 psi	93 °C	Flow Controls	Parflex Division	-8	76.2 m	n/a	Natural	9.5 mm	Lubricants	Polyamide (PA)
NN-8-062-0100	Backordered	855 in stock	$4.00/foot	FT	Natural	1/2	100 ft box	31.8 mm	1000 psi	Pneumatics	-54 °C	n/a	1/2 inch	0.039 lb/ft	250 psi	93 °C	TrueSeal™	Parflex Division	-8	100 ft Box	n/a	Natural	0.375 inch	Chemicals	Polyamide (PA)
NN-8-062-EZ	Backordered	240 in stock	POR	FT	Natural	1/2	OBSOLETE 100 ft box	1.25 inch	69 bar	Lubrication	-54 °C	n/a	1/2 inch	0.039 lb/ft	250 psi	93 °C	Flow Controls	Parflex Division	-8	100 ft Box	n/a	Natural	9.5 mm	Mild Chemicals (Pesticides)	Polyamide (PA)
NN-8-124	Backordered	1429 in stock	$5.86/foot	FT	Natural	1/2	250	25.4 mm	137.9 bar	Fluid Transfer	-65 °F	n/a	12.7 mm	0.1 kg/m	500 psi	200 °F	Hi-Duty	Parflex Division	-8	76.2 m	n/a	Natural	0.253 inch	Hydraulic Fluids	Polyamide (PA)
NN8X1	1105 in stock	8640 in stock	$2.29/foot	FT	Natural	8MM	100	1.14 inch	986 psi	Fluid Transfer	-54 °C	n/a	8 mm	0.016 lb/ft	247 psi	93 °C	Compression	Parflex Division	8 mm	76.2 m	n/a	Natural	0.253 inch	Air	Polyamide (PA)
