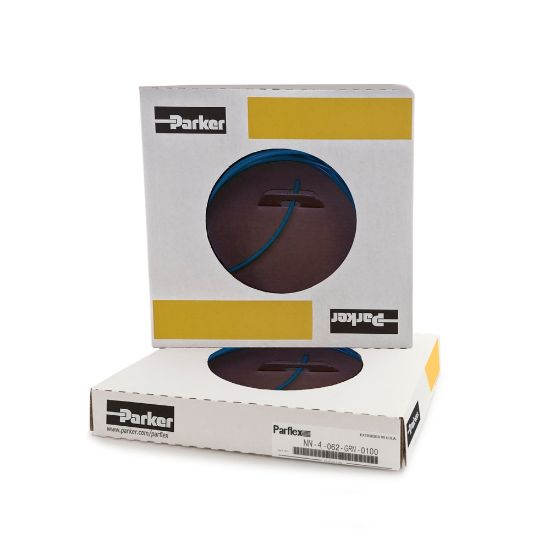

N-4-040-BLU-0100 - Nylon Tubing

Nylon plastic tubing tubing is formulated from abrasion-resistant, heat and light-stabilized nylon that is capable of operating at 200°F. It exhibits low-level water absorption and is chemically resistant. (Series N/NB)

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	Backordered

SKU N-4-040-BLU-0100

$1.35/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Color	Blue
Order Size	1/4	Standard Pack Qty (ft)	100 ft box
Maximum Operating Pressure	21.4 bar	Weight	0.012 lb/ft
Compatible Fitting	Compress-Align®	Maximum Operating Temperature	93 °C
Division	Parflex Division	Size	-4
Length per Package	30.5 m Box	Color	Blue
Minimum Bend Radius	0.88 inch	Cover Material	n/a
Minimum Operating Temperature	-54 °C	Tube Inside Diameter	0.170 inch
Media	Water	Tube Material	Polyamide (PA)
Specifications Met	n/a	Minimum Burst Pressure	86.2 bar
Application	Pneumatics	Tube Outside Diameter	1/4 inch
