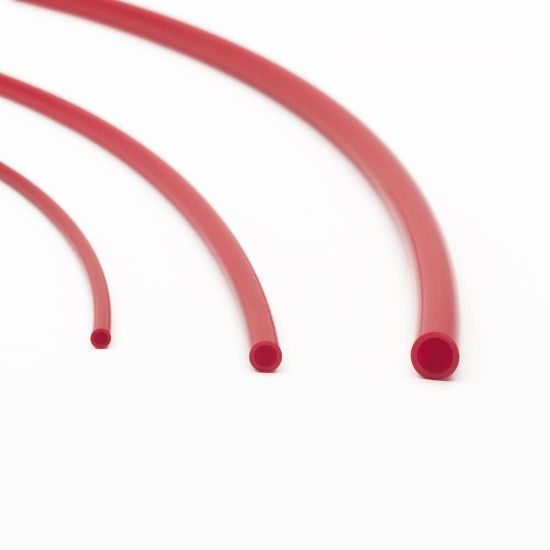

N-4-035-RED - Nylon Tubing

Nylon plastic tubing tubing is formulated from abrasion-resistant, heat and light-stabilized nylon that is capable of operating at 200°F. It exhibits low-level water absorption and is chemically resistant. (Series N/NB)

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	1002 in stock

SKU N-4-035-RED

$1.34/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Order Size	1/4
Color	Red	Standard Pack Qty (ft)	250
Tube Material	Polyamide (PA)	Media	Chemicals
Division	Parflex Division	Size	-4
Maximum Operating Temperature	93 °C	Compatible Fitting	Hi-Duty
Minimum Operating Temperature	-65 °F	Tube Outside Diameter	6.4 mm
Cover Material	n/a	Minimum Bend Radius	0.88 inch
Color	Red	Tube Inside Diameter	4.6 mm
Maximum Operating Pressure	17.2 bar	Minimum Burst Pressure	69 bar
Application	Fluid Transfer	Specifications Met	n/a
Length per Package	250 ft	Weight	0.016 kg/m
