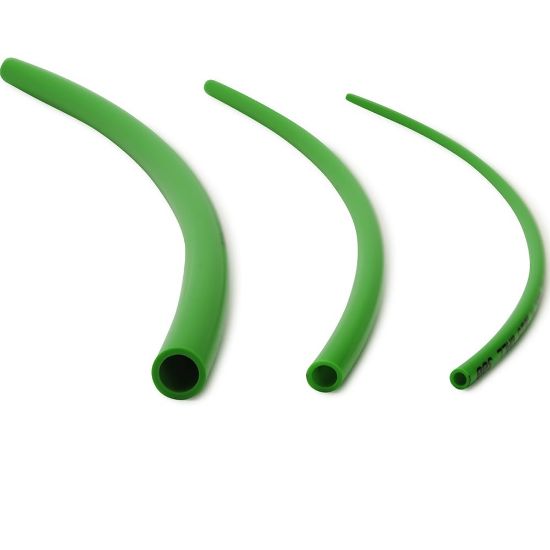

N-4-035-GRN - Nylon Tubing

Nylon plastic tubing tubing is formulated from abrasion-resistant, heat and light-stabilized nylon that is capable of operating at 200°F. It exhibits low-level water absorption and is chemically resistant. (Series N/NB)

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	720 in stock

SKU N-4-035-GRN

$1.34/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Color	Green
Order Size	1/4	Standard Pack Qty (ft)	250
Maximum Operating Pressure	17.2 bar	Weight	0.016 kg/m
Maximum Operating Temperature	200 °F	Compatible Fitting	TrueSeal™
Size	-4	Length per Package	250 ft
Division	Parflex Division	Media	Mild Chemicals (Pesticides)
Tube Material	Polyamide (PA)	Tube Outside Diameter	6.4 mm
Application	Pneumatics	Minimum Burst Pressure	1000 psi
Specifications Met	n/a	Cover Material	n/a
Tube Inside Diameter	0.180 inch	Minimum Bend Radius	0.88 inch
Minimum Operating Temperature	-65 °F	Color	Green
