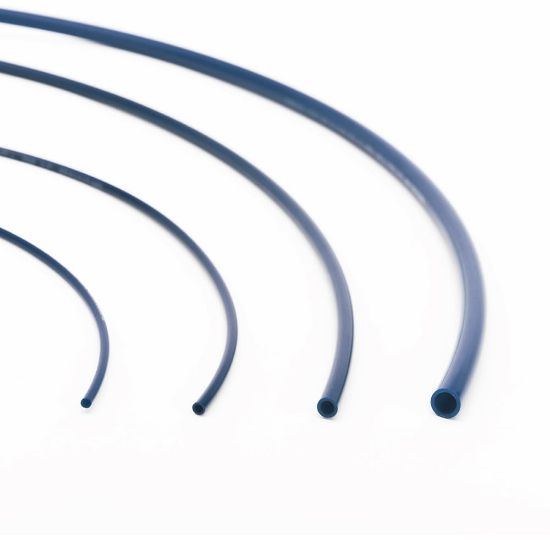

N-4-035-BLU - Nylon Tubing

Nylon plastic tubing tubing is formulated from abrasion-resistant, heat and light-stabilized nylon that is capable of operating at 200°F. It exhibits low-level water absorption and is chemically resistant. (Series N/NB)

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	1781 in stock

SKU N-4-035-BLU

$1.34/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Color	Blue
Order Size	1/4	Standard Pack Qty (ft)	250
Weight	0.011 lb/ft	Media	Chemicals
Tube Material	Polyamide (PA)	Size	-4
Length per Package	76.2 m	Maximum Operating Temperature	93 °C
Compatible Fitting	NTA®	Division	Parflex Division
Minimum Operating Temperature	-54 °C	Tube Outside Diameter	1/4 inch
Cover Material	n/a	Minimum Bend Radius	0.88 inch
Color	Blue	Tube Inside Diameter	0.180 inch
Maximum Operating Pressure	250 psi	Minimum Burst Pressure	69 bar
Application	Fluid Transfer	Specifications Met	n/a
