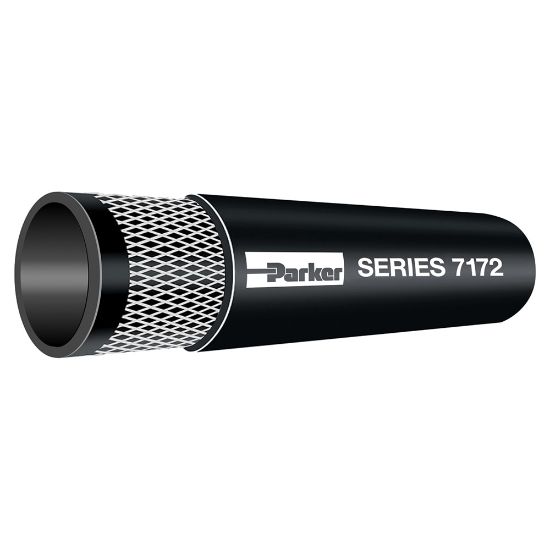

7172-31200 - Nonconductive Cable Cover Hose, Series 7172

Note: This product is no longer available - please contact us for further assistance

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 98 days
Partner Available:	Backordered

SKU 7172-31200

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	5/16
Maximum Working Pressure (psi)	200	Minimum Operating Temperature	-20
Hose Reinforcement Material	2 Plies of Textile	Minimum Bend Radius	2.5
Cover Material	Ethylene Propylene Diene Monomer (EPDM)	Outside Diameter	0.500
Weight	0.08	Maximum Operating Pressure	200
Inside Diameter	5/16	Package Type	Reel
Application	Welding	Division	Hose Products Division
Length per Package	750	Cover Color	Black
Media	Air	Design Factor	4:1
Maximum Operating Temperature	212	Hose Inner Tube Material	Nitrile/Styrene Butadiene Rubber (SBR) Blend

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
