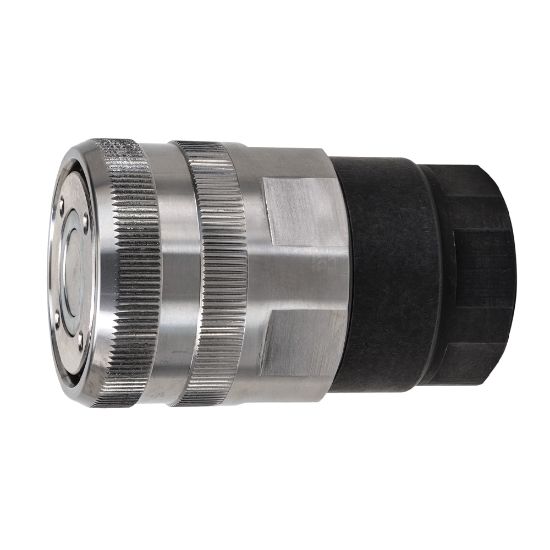

59-751-12FO - Non-Spill, Flat Face Hydraulic ACME Thread to Connect Quick Couplings - 59 Series

Parker's non-spill, flat face connect under pressure hydraulic couplers and nipples are heavy duty for use in high pressure, high impulse hydraulic applications where fluid lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU 59-751-12FO

$364.22/each

Products specifications

Attribute name	Attribute value
UOM	EA	Coupling Half	Coupler
Body Size (inch)	3/4	Connection Thread Size (inch)	1 1/16 - 12
Connection Type	UNF	Maximum Working Pressure (psi)	6000
Minimum Operating Temperature	-40 °F	Application	High Pressure Hydraulics
Dimensional Weight	0.23819089208633099 lb	Sleeve Type	Thread to Connect
Maximum Operating Pressure	6000 psi	Division	Quick Coupling Division
Body Material	Steel	Thread Size	Female
Valve Type	Non-spill	Division	Quick Coupling Division
Maximum Operating Temperature	250 °F	Seal Material	Polyurethane/Nitrile
Media	Hydraulic	Lock Type	Threads
Plating Type	Zinc-nickel Black FNC Coating
