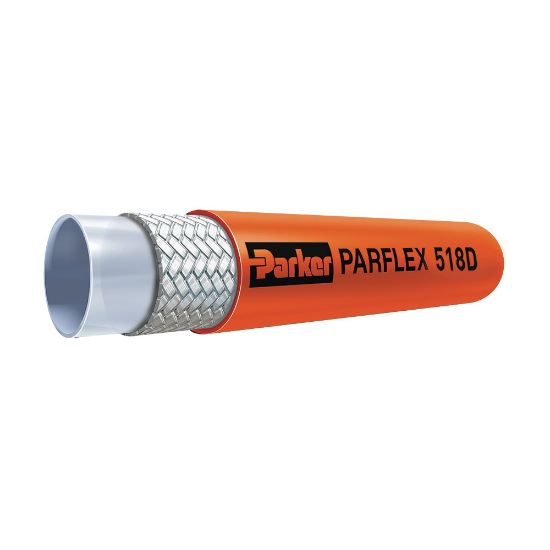

Picture of 518D-3 - Non-Conductive Thermoplastic Hoses - 518D

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

518D-3 - Non-Conductive Thermoplastic Hoses - 518D

Parker’s Non-Conductive 100R7 hose has a high-density braid to handle maximum impulse life. Most 518D sizes feature a nylon core tube. Available as a formed hose and/or bonded hose.
Manufacturer: Parker
Availability:
438 in stock
Decatur, IL105
Wichita, KS86
Kansas City, KS73
TOPEKA, KS69
COLUMBIA, MO56
Joplin, MO38
Springfield, MO7
Peoria, IL2
Partner Available:4833 in stock
Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.
SKU 518D-3
$4.69/foot
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTHose I.D. (inch)3/16
Material - Hose Inner TubeNylonDivisionParflex Division
Size-3Maximum Operating Temperature100 °C
Compatible Fitting51R SeriesHose Inner Tube MaterialPolyamide (PA)
MediaPetroleum Hydraulic FluidsDesign Factor4:1
Cover MaterialPolyurethaneMinimum Operating Temperature-40 °F
Minimum Bend Radius19 mmHose Reinforcement MaterialFiber
Specifications MetANSI A92.2ApplicationMobile Hydraulic Equipment
Inside Diameter3/16 inchMaximum Operating Pressure224 bar
Weight0.07 kg/mOutside Diameter0.430 inch
