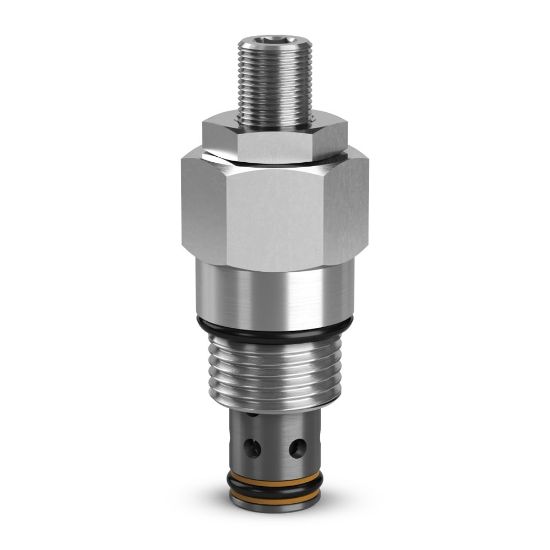

J02A2WN - Needle Flow Control Valves

Parker offers standard needle valves and needle valves with a reverse free-flow check. Parker’s needle valves are non-compensated adjustable orifices capable of flows up to 225 lpm (60 gpm) and pressures as high as 420 bar (6000 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 105 days
Partner Available:	Backordered

SKU J02A2WN

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Needle Type	Fine	Adjustment Mechanism	Knob
Maximum Inlet Pressure Rating	6000 PSI, 420 BAR	Flow Rate	12 GAL/MIN, 45 L/MIN
Minimum Operating Temperature	-30 °F	Needle Type	Fine
Adjustment Mechanism	Knob	Cavity Size	C08-2
Maximum Operating Pressure	420 bar	Actuation Type	Manual
Body Material	N/A	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Weight	0.11 kg	Operating Temperature	-30 to +250 °F
Configuration	Needle	Flow Rate	45 L/min
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Maximum Flow Rate	12 Gal/min
Division	Hydraulic Cartridge Systems Division	Connection Type	N/A
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Installation Torque	40 Nm
Division	Mobile Hydraulic Systems Division Europe	Operation Type	Manually operated
Function	2-Way	Connection Size	N/A
Valve Material	All parts steel. All operating parts hardened steel	Seal Material	Nitrile
Leak Rate	5 @ 1450 PSI (100 BAR) drops/min	Maximum Operating Temperature	+121 °C
Maximum Inlet Pressure Rating	6000 psi
