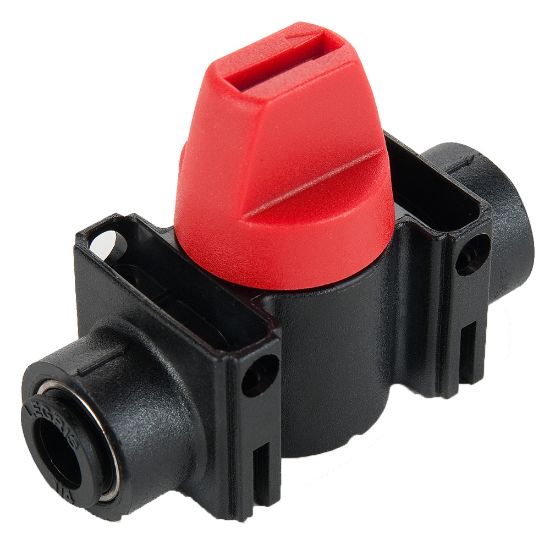

MVV309-10M - Mini Ball Valves

Parker's mini ball valves enable in-line opening and closing of a pneumatic circuit. These polymer lightweight ball valves allow for a significant reduction in installation time while offering full flow capability and compact dimensions.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU MVV309-10M

$48.32/each

Products specifications

Attribute name	Attribute value
UOM	EA	Minimum Operating Temperature	-20 °C
Ball Material	Brass	Specifications Met	N/A
Mounting Type	Panel	Maximum Operating Pressure	10 bar
Vented	Yes	Vacuum Pressure Rating	28 Inch-Hg
Actuation Type	Manual	Handle Type	Nylon
Body Material	Nylon	Configuration	Tube to Tube
Orifice Size	.28	Application	Pneumatics,Packaging, Vacuum,Robotics, Textile
Division	Fluid System Connectors Division	Maximum Flow Rate	N/A
Connection Type	PTC	Seat Material	Nylon
Shape	In-Line	Operation Type	n/a
Function	2-Way, Normally Open, Normally Closed	Media	Compressed Air
Connection Size	10 x 10 mm	Product Type	Mini Ball Valve
Gripping Ring Material	Stainless Steel	Seal Material	NBR
Maximum Operating Temperature	80 °C	Stem Material	Brass
