*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

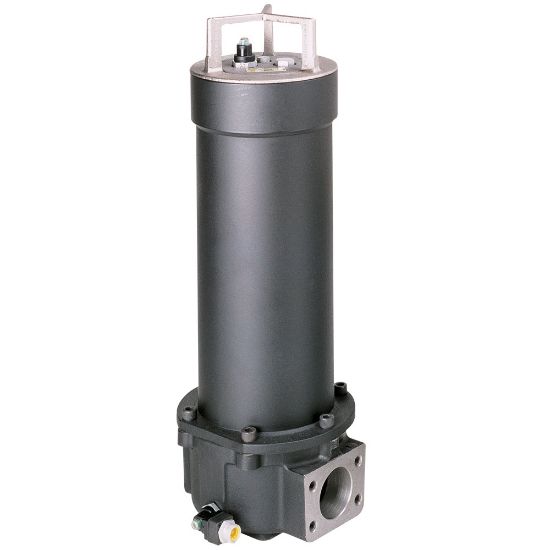

IL82R02QEPM225RR1 - Medium Pressure Inline Filter IL8 Series

Parker's IL8 Inline Filters combines high efficiency Quantumfiber filtration with low cost installation. Allowable operating pressure of 500 PSI/34.5 Bar and capable of flows up to 425 GPM/1609 LPM depending on viscosity.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU IL82R02QEPM225RR1

$4,689.83/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Options	None	Bypass Valve Pressure Rating	25 psi (1.7 bar)
Micron Rating	02QE microglass	Flow Rate	200 gpm (757 lpm)
Indicator Type	no pressure port, visual auto reset	Port Connection Type	SAE-32 straight thread
Indicator Pressure Setting	25 psid	Weight	50 lb
Maximum Operating Temperature	225.0 °F	Micron Rating	02QE Microglass
Seal Material	Nitrile	For Fluid Type	Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at HFF.techsupport@support.parker.com or call 800-253-1258
Pressure Rating	500	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Filter Element Type	cartridge	Housing Material	bowl - low carbon steel; cover - anodized aluminum
Bypass Valve Pressure Rating	25 psid	Product Type	Hydraulic Filter
Options	none	Mounting Style	inline
Flow Rate	757.0 L/min	Port Type	SAE-32 straight thread
Compatible Element	933834Q	Product Style	Hydraulic Filter
Indicator Type	no pressure port, visual auto reset
