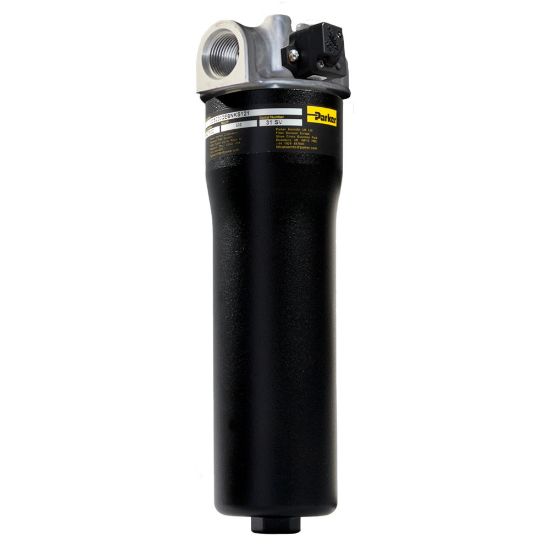

12CS205QEBMLKN121 - Medium Pressure Inline Filter 12CS/50CS Series

The Parker 12CS/50CS Coreless Medium Pressure Spin-On Filter Series are the Smart Alternative to Spin-on Cans. Max allowable operating pressure of 500 PSI/34.5 Bar and capable of flows up to 50 GPM/190 LPM depending on viscosity.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	Backordered

SKU 12CS205QEBMLKN121

Products specifications

Attribute name	Attribute value
UOM	EA	Options	No options
Flow Rate	25 gpm (95 lpm)	Micron Rating	05Q Microglass
Seal Material	Nitrile	Indicator Type	Visual with push to test, left
Port Connection Type	3/4" NPT integral threads	Bypass Valve Pressure Rating	50 psid (3.5 bar)
Indicator Pressure Setting	3.5 bar	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Pressure Rating	34.5 bar	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Filter Element Type	Coreless	Maximum Operating Temperature	225.0 °F
Micron Rating	05Q Microglass	Options	No options
Seal Material	Nitrile	Bypass Valve Pressure Rating	50.0 psid
Product Type	Hydraulic Filter	Indicator Type	Visual with push to test, left
Housing Material	Bowl - wrought aluminum; Head - cast aluminum	Compatible Element	940764Q
Product Style	Hydraulic Filter	Mounting Style	Inline
Flow Rate	25.0 Gal/min	Port Type	3/4" NPT integral threads
Weight	3 lbs (1.4 kg)
