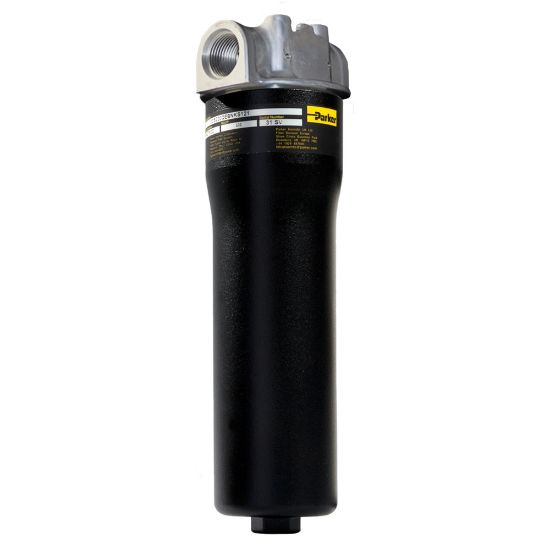

12CS202QEBNKS121 - Medium Pressure Inline Filter 12CS/50CS Series

The Parker 12CS/50CS Coreless Medium Pressure Spin-On Filter Series are the Smart Alternative to Spin-on Cans. Max allowable operating pressure of 500 PSI/34.5 Bar and capable of flows up to 50 GPM/190 LPM depending on viscosity.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU 12CS202QEBNKS121

$218.95/each

Products specifications

Attribute name	Attribute value
UOM	EA	Options	No options
Flow Rate	25 gpm (95 lpm)	Micron Rating	02Q Microglass
Seal Material	Nitrile	Indicator Type	No indicator
Port Connection Type	SAE-12 integral threads	Bypass Valve Pressure Rating	50 psid (3.5 bar)
Port Type	SAE-12 integral threads	Flow Rate	95.0 L/min
Weight	3 lbs (1.4 kg)	Filter Element Type	Coreless
Pressure Rating	500 psi	Indicator Pressure Setting	50.0 psid
Division	Engine Mobile Hydraulic and Fuel Filtration Division	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Micron Rating	02Q Microglass	Options	No options
Seal Material	Nitrile	Maximum Operating Temperature	107.0 °C
Bypass Valve Pressure Rating	3.5 bar	Housing Material	Bowl - wrought aluminum; Head - cast aluminum
Product Type	Hydraulic Filter	Indicator Type	No indicator
Compatible Element	940765Q	Product Style	Hydraulic Filter
Mounting Style	Inline
