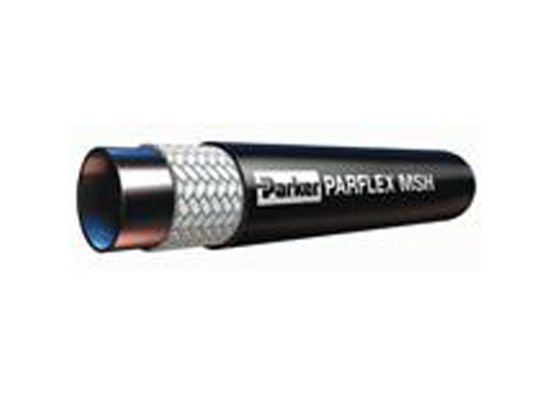

MSH-6 - Marine Hose – Steering

With fast, accurate response and a corrosion resistant thermoplastic construction, the Parker MSH marine hose is ideal for marine hydraulic steering systems. MSH hose is salt water resistant and 1000 psi.

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	55 in stock

SKU MSH-6

$6.16/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3/8
Application	Hydraulics	Minimum Bend Radius	76 mm
Minimum Operating Temperature	-40 °F	Hose Reinforcement Material	Fiber
Outside Diameter	0.590 inch	Weight	0.07 lb/ft
Maximum Operating Pressure	6.9 MPa	Inside Diameter	3/8 inch
Maximum Operating Temperature	200 °F	Compatible Fitting	MS Series
Hose Inner Tube Material	Polyamide (PA)	Size	-6
Division	Parflex Division	Cover Material	Polyurethane
Media	Petroleum Hydraulic Fluids	Design Factor	4:1
UOM	FT	Working Pressure	1000 PSI (70 bar)
Material	Thermoplastic	Inner Diameter	0.375 Inch
Mating Fitting Series	108MS, 208MS	Pkg Qty	600
Pkg Qty/UOM	600 FT	Inner Diameter Inch/mm	Inch
Inch/Metric	Inch	Parker Group	Fluid Connector
Material	Thermoplastic	Hose Pressure Range	Medium
Series	MSH	Mating Fitting Series	108MS, 208MS
Inner Diameter	0.375 Inch	Working Pressure Range	1000 to 1999 PSI (69 to 138 bar)
Parker Division	Parflex	Application	Marine Steering
