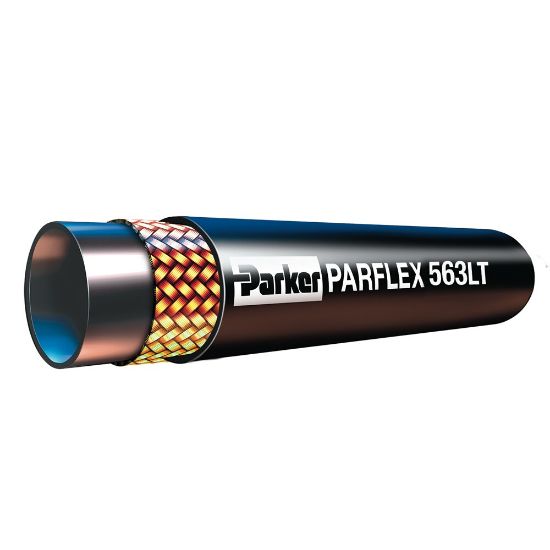

563LT-10 - Low Temperature Hydraulic Hose - 563LT 3,000 psi

Parker 563LT low temperature thermoplastic hydraulic hose is one of Parkers premier fork lift products and features operating temperatures as low as -70°F. Available as a single or twinline hose assembly.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU 563LT-10

$10.20/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	5/8
Division	Parflex Division	Size	-10
Compatible Fitting	43 Series	Maximum Operating Temperature	250
Hose Inner Tube Material	Copolyester	Media	Lubricants (Oils)
Design Factor	4:1	Minimum Operating Temperature	-50
Cover Material	Copolyester	Application	Cold Climate Applications
Minimum Bend Radius	3-1/2	Specifications Met	SAE 100R17
Hose Reinforcement Material	Braid of High Tensile Steel Wire	Inside Diameter	5/8
Maximum Operating Pressure	3045	Outside Diameter	0.970
Weight	0.40

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

4660-DuraMax Low Temperature Brochure (PDF)
