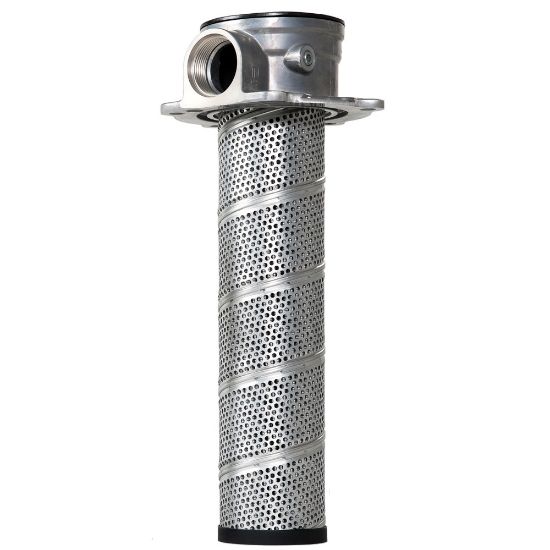

PT4320QBPGS201 - Low Pressure Tank Top Filters PT Series

Parker’s PT Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/180 LPM depending on viscosity.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	Backordered

SKU PT4320QBPGS201

$203.88/each

Products specifications

Attribute name	Attribute value
UOM	EA	Options	None
Flow Rate	55 gpm (208.2 lpm)	Filter Element Type	20Q Microglass
Port Connection Type	SAE-20	Seal Material	Nitrile
Bypass Valve Pressure Rating	25 psid (1.7 bar)	Indicator Type	Plugged Ports
Weight	1.21 kg	Compatible Element	936879
Indicator Type	Plugged ports	Flow Rate	55.0 Gal/min
Mounting Style	Tank Mounted	Bypass Valve Pressure Rating	1.7 bar
Seal Material	Nitrile	Options	Tank Mounted
Housing Material	Aluminum	Filter Element Type	20Q Microglass
Pressure Rating	15 psi	Indicator Pressure Setting	No Indicator
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Maximum Operating Temperature	225.0 °F
Division	Engine Mobile Hydraulic and Fuel Filtration Division
