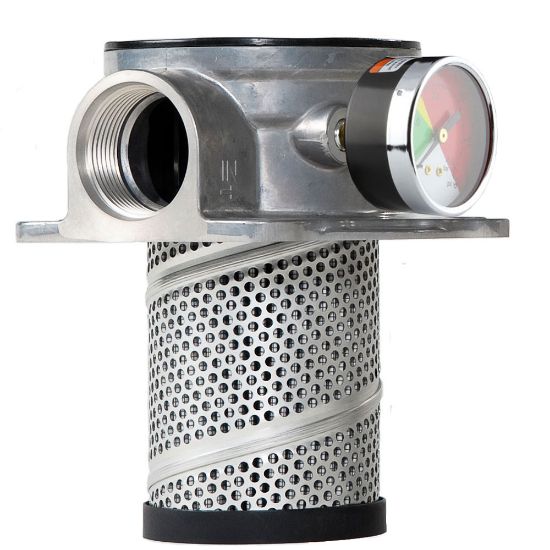

PT4105QBGGS201 - Low Pressure Tank Top Filters PT Series

Parker’s PT Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/180 LPM depending on viscosity.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU PT4105QBGGS201

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Options	None	Filter Element Type	05Q Microglass
Bypass Valve Pressure Rating	25 psid (1.7 bar)	Indicator Type	Pressure gauge, 25 psi
Flow Rate	30 gpm (113.6 lpm)	Port Connection Type	SAE-20
Indicator Type	Pressure gauge, 25 psi	Compatible Element	936743
Mounting Style	Tank Mounted	Flow Rate	113.6 L/min
Options	Tank Mounted	Seal Material	Nitrile
Bypass Valve Pressure Rating	1.7 bar	Housing Material	Aluminum
Filter Element Type	05Q Microglass	Pressure Rating	10.3 bar
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Maximum Operating Temperature	107.0 °C
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Weight	0.81 kg
Indicator Pressure Setting	No Indicator
