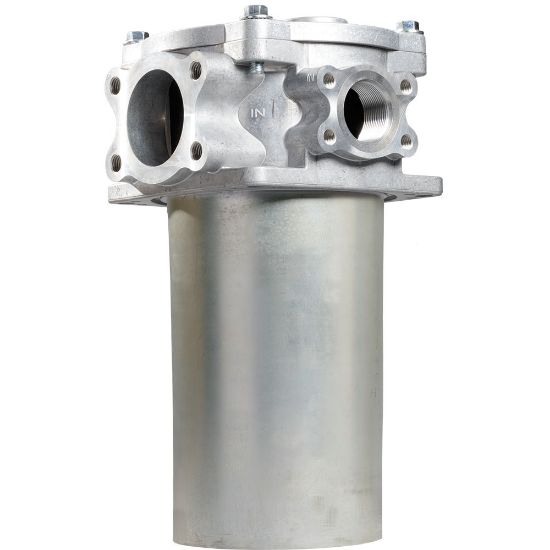

GLF4110QBSI2Y40MD - Low Pressure Tank Top Filters GLF Series

Parker's GLF Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 230 GPM/871 LPM depending on viscosity.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 18 days
Partner Available:	Backordered

SKU GLF4110QBSI2Y40MD

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Filter Element	10Q Microglass	Bypass Valve (psi)	35
Options	Magnets and Drop Tube	Indicator Type	Pressure Switch
Port Connection Type	Dual SAE Code 61 Flange Face Ports (1x2 1/2” port, 1x2” port)	Flow Rate (gpm)	200
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Pressure Rating	150 psi
Housing Material	Cast Aluminum Alloy	Flow Rate	757 L/min
Port Type	Dual SAE Code 61 Flange Face<br/>Ports (1x2 1/2” port, 1x2” port)	Maximum Operating Temperature	225 °F
Seal Material	Nitrile	Weight	9 lb
Options	Magnets and Drop Tube	Mounting Type	Tank Mounted
Filter Element Type	10Q Microglass	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Compatible Element	946433Q	Indicator Type	Pressure Switch
Indicator Pressure Setting	1.9 bar	Bypass Valve Pressure Rating	2.4 bar
