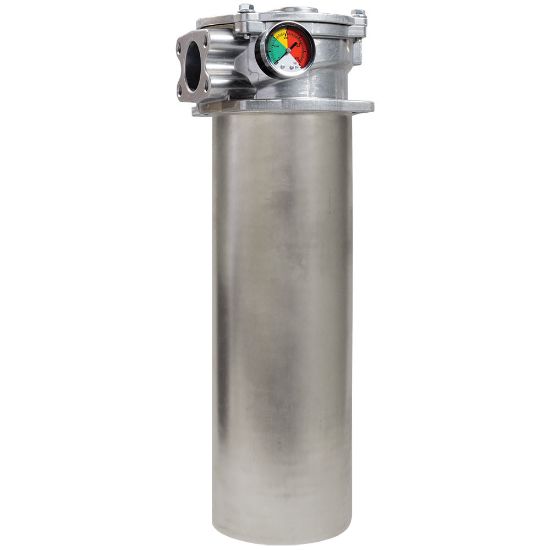

GLF3210QBGI2Y32D - Low Pressure Tank Top Filters GLF Series

Name: GLF3210QBGI2Y32D - Low Pressure Tank Top Filters GLF Series
SKU: GLF3210QBGI2Y32D
Price: 683.08 USD
Availability: LimitedAvailability

Parker's GLF Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 230 GPM/871 LPM depending on viscosity.

Manufacturer: Parker

Availability:

1 Limited Stock

Peoria, IL

Partner Available:

Backordered

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU GLF3210QBGI2Y32D

$683.08/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Filter Element	10Q Microglass	Bypass Valve (psi)	35
Options	Drop Tube	Indicator Type	Tri-color Pressure Gauge
Port Connection Type	Dual 2" SAE Flange Face 61 (1/2" - 13 UNC)	Flow Rate (gpm)	225
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Pressure Rating	150 psi
Housing Material	Cast Aluminum Alloy	Flow Rate	851 L/min
Port Type	Dual 2" SAE Flange Face 61 (1/2" - 13 UNC)	Maximum Operating Temperature	107 °C
Seal Material	Nitrile	Weight	8 lb
Options	Drop Tube	Mounting Type	Tank Mounted
Filter Element Type	10Q Microglass	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Compatible Element	945900Q	Indicator Type	Tri-color Pressure Gauge
Indicator Pressure Setting	1.9 bar	Bypass Valve Pressure Rating	2.4 bar
