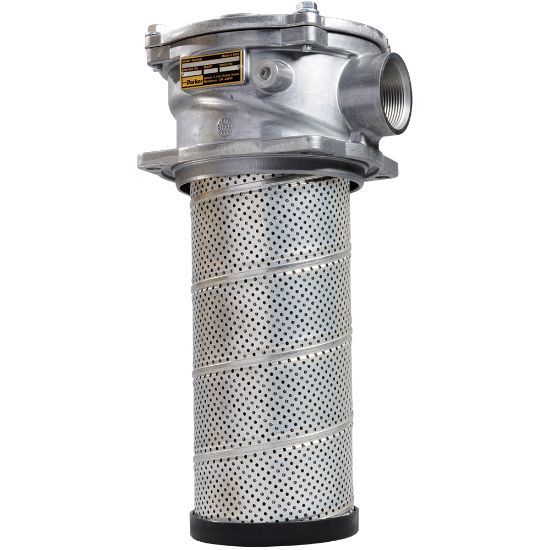

GLF3110QVPIS241 - Low Pressure Tank Top Filters GLF Series

Parker's GLF Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 230 GPM/871 LPM depending on viscosity.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	Backordered

SKU GLF3110QVPIS241

$477.69/each

Products specifications

Attribute name	Attribute value
UOM	EA	Filter Element	10Q Microglass
Options	None	Seal Material	Fluorocarbon
Indicator Type	Port plugged	Port Connection Type	SAE-24
Flow Rate (gpm)	150	Bypass Valve (psi)	35
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Pressure Rating	10 bar
Housing Material	Cast Aluminum Alloy	Flow Rate	567 L/min
Port Type	SAE-24	Maximum Operating Temperature	135 °C
Seal Material	Fluorocarbon	Weight	7 lb
Options	None	Mounting Type	Tank Mounted
Filter Element Type	10Q Microglass	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Compatible Element	945908Q	Indicator Type	Port Plugged
Indicator Pressure Setting	1.9 bar	Bypass Valve Pressure Rating	2.4 bar
