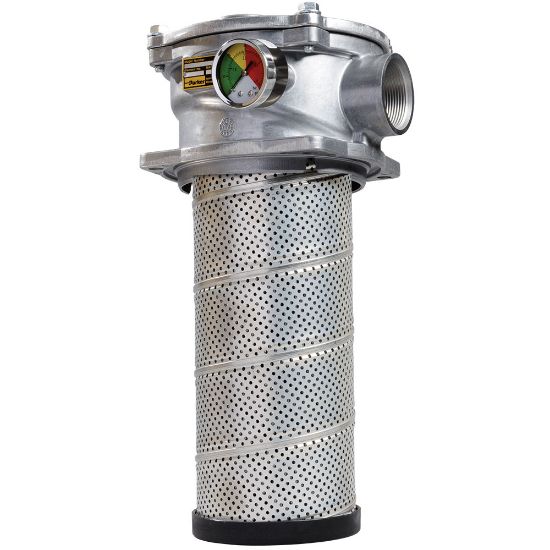

GLF3110QBGIS241 - Low Pressure Tank Top Filters GLF Series

Parker's GLF Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 230 GPM/871 LPM depending on viscosity.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	2 Limited Stock

SKU GLF3110QBGIS241

$553.88/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Filter Element	10Q Microglass	Options	None
Port Connection Type	SAE-24	Flow Rate (gpm)	150
Bypass Valve (psi)	35	Indicator Type	Tri-color Pressure Gauge
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Pressure Rating	150 psi
Housing Material	Cast Aluminum Alloy	Flow Rate	567 L/min
Port Type	SAE-24	Maximum Operating Temperature	107 °C
Seal Material	Nitrile	Weight	3.18 kg
Options	None	Mounting Type	Tank Mounted
Filter Element Type	Cartridge	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Compatible Element	945896Q	Indicator Type	Tri-color Pressure Gauge
Indicator Pressure Setting	1.9 bar	Bypass Valve Pressure Rating	2.4 bar
