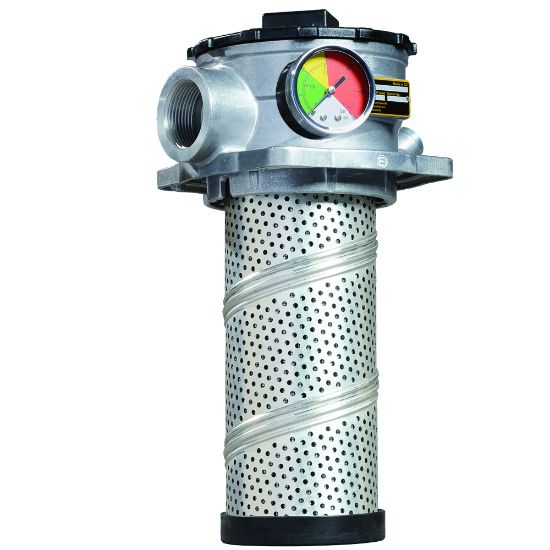

GLF2105QBGIS241 - Low Pressure Tank Top Filters GLF Series

Parker's GLF Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 230 GPM/871 LPM depending on viscosity.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	Backordered

SKU GLF2105QBGIS241

$226.36/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Filter Element	05Q Microglass	Options	None
Port Connection Type	SAE-24	Flow Rate (gpm)	70
Bypass Valve (psi)	35	Indicator Type	Tri-color Pressure Gauge
Indicator Type	Tri-color Pressure Gauge	Mounting Type	Tank Mounted
Compatible Element	946432Q	Maximum Operating Temperature	107 °C
Seal Material	Nitrile	Options	None
Housing Material	Cast Aluminum Alloy	Bypass Valve Pressure Rating	35 psi
Indicator Pressure Setting	28 psi	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Filter Element Type	Cartridge	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Pressure Rating	150 psi	Flow Rate	265 L/min
Port Type	SAE-24	Weight	3.18 kg
