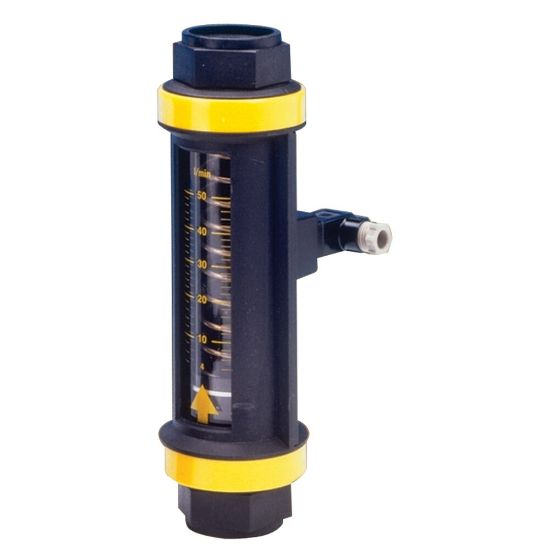

EF7731112220 - Low Pressure Mechanical Flowmeter – Easiflow

The Easiflow line comprises a range of highly economical, inline mechanical flowmeters that provide visual indication of fluid flow in hydraulic systems. Capable of measuring flows ranging from 1 to 150 L/MIN. Maximum allowable working pressure: 10 bar.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU EF7731112220

$676.71/each

Products specifications

Attribute name	Attribute value
UOM	EA	Switch Type	No Switch
Flow Rate	5 to 50 l/min	For Fluid Type	Water
Height	60 mm	Operating Humidity	n/a
Seal Material	Nitrile	Technology	Filtration
Accuracy	+/- 5% FSD	Operating Pressure	145 psi
Product Type	Condition Monitor	Body Material	Glass Filled Nylon
Ingress Protection Rating	n/a	Communication Interface	n/a
Division	Hydraulic & Industrial Process Filtration Division EMEA	Minimum Fluid Temperature	+5 °C
Industry	Industrial Manufacturing Equipment	Width	60 mm
Sensing Method	Variable Oriface Flowmeter	Division	Hydraulic & Industrial Process Filtration Division EMEA
For Fluid Type	Water	Flow Rate	4 to 50 L/min
Materials of Construction	Borosilicate Glass	Specifications Met	Pressure Directive
Port Type	BSP	Diameter	60 mm
Electrical Requirements	n/a	Operating Temperature	5 to 80 °C
Port Size	1 inch	Length	196 mm
Brand	Parker	Signal Output	n/a
ATEX Specifications Met	n/a	Maximum Fluid Temperature	+80 °C
Product Style	Flow Meter	Cycle Time	n/a

Product resources

Literature and Reference Materials

Easiflow_Flowmeters_bulletin.pdf (PDF)
