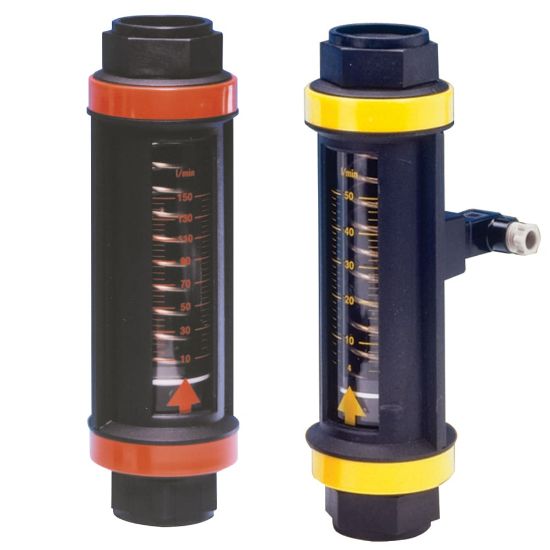

EF7731111121 - Low Pressure Mechanical Flowmeter – Easiflow

The Easiflow line comprises a range of highly economical, inline mechanical flowmeters that provide visual indication of fluid flow in hydraulic systems. Capable of measuring flows ranging from 1 to 150 L/MIN. Maximum allowable working pressure: 10 bar.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 49 days
Partner Available:	Backordered

SKU EF7731111121

Products specifications

Attribute name	Attribute value
UOM	EA	Switch Type	Magnetically Operated Reed
For Fluid Type	Oil	Flow Rate	2 to 30 l/min
For Fluid Type	Oil	Division	Hydraulic & Industrial Process Filtration Division EMEA
Industry	Off-Road Machinery	Width	60 mm
Operating Humidity	n/a	Height	106 mm
Seal Material	Nitrile	Body Material	Glass Filled Nylon
Minimum Fluid Temperature	+5 °C	Sensing Method	Variable Oriface Flowmeter
Ingress Protection Rating	n/a	Communication Interface	n/a
Division	Hydraulic & Industrial Process Filtration Division EMEA	Maximum Fluid Temperature	+60 °C
Electrical Requirements	YES	ATEX Specifications Met	n/a
Cycle Time	n/a	Product Style	Flow Meter
Brand	Parker	Signal Output	AC/DC
Specifications Met	Pressure Directive	Operating Temperature	5 to 60 °C
Flow Rate	2 to 30 L/min	Materials of Construction	Borosilicate Glass
Diameter	60 mm	Port Type	BSP
Accuracy	+/- 5% FSD	Port Size	1 inch
Product Type	Condition Monitor	Operating Pressure	10 bar
Technology	Filtration	Length	196 mm

Product resources

Literature and Reference Materials

Easiflow_Flowmeters_bulletin.pdf (PDF)
