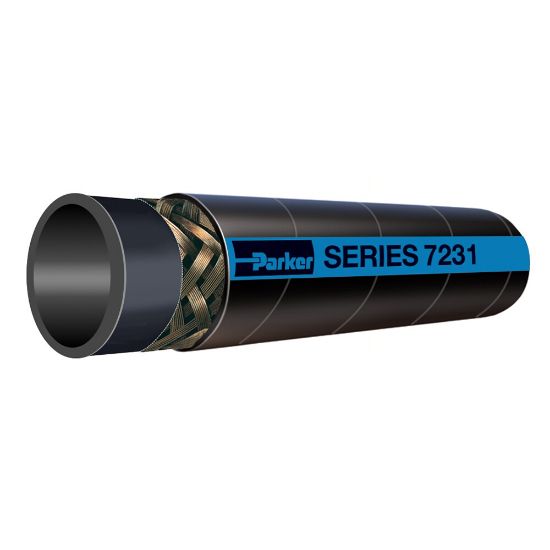

7231-1251 - Liquid Petroleum Gas LPG Hose, Series 7231

Parker's Series 7231 LPG Hose provides superior service for LPG/propane supply and transfer applications. This hose provides a durable vibration dampening connector between metal piping on vehicles and bulk loading performance.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	150 in stock

SKU 7231-1251

$71.60/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1-1/4
Maximum Working Pressure (psi)	350	Division	Hose Products Division
Application	Petroleum	Media	LPG
Maximum Operating Pressure	350 psi	Maximum Operating Temperature	180 °F
Minimum Operating Temperature	-40 °F	Specifications Met	CSA 8.1, Type I
Weight	0.97 lb/ft	Outside Diameter	1.750 inch
Cover Material	Chloroprene Rubber (CR)	Inside Diameter	1-1/4 inch
Compatible Fitting	43 Series	Minimum Bend Radius	16.5 inch
Hose Inner Tube Material	Black	Hose Reinforcement Material	1 Braid of Stainless Steel Wire
Cover Color	Black	Package Type	Carton
Length per Package	100 ft	Cover Structure	Perforated

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
