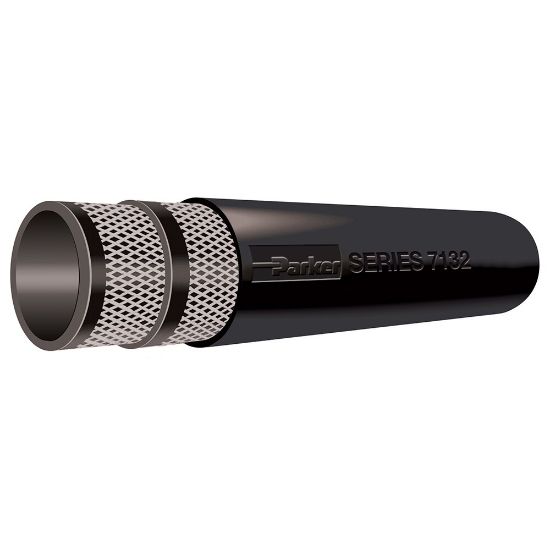

7132-100354125 - Liquid Petroleum Gas LPG Hose, Series 7132

Liquid Petroleum Gas LPG Hose is designed for delivery, supply and transfer of propane in commercial and industrial applications to 140°F and 350 psi, Series 7132

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 49 days
Partner Available:	Backordered

SKU 7132-100354125

$14.36/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1
Standard Pack Qty (ft)	1 x 125	Maximum Working Pressure (psi)	350
Maximum Operating Temperature	180 °F	Hose Inner Tube Material	Nitrile
Compatible Fitting	7661 Series	Division	Hose Products Division
Cover Material	Chloroprene Rubber (CR)	Media	LPG
Package Type	Carton	Application	Petroleum
Cover Structure	Perforated	Minimum Bend Radius	7.5 inch
Specifications Met	UL 21.0	Hose Reinforcement Material	4 Plies of Textile
Minimum Operating Temperature	-40 °F	Cover Color	Black
Inside Diameter	25.4 mm	Weight	0.94 kg/m
Outside Diameter	38.1 mm	Maximum Operating Pressure	350 psi
