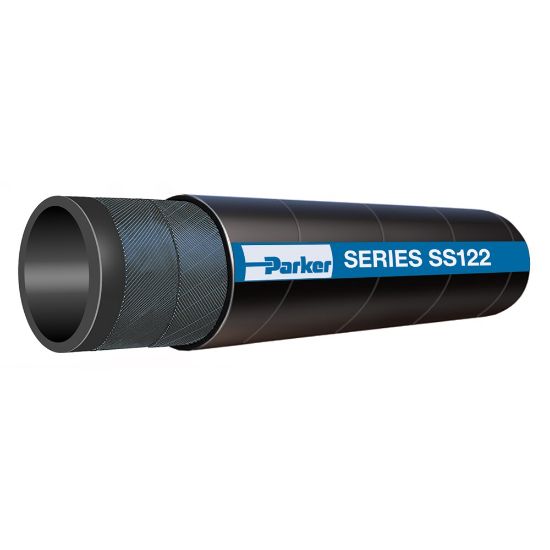

SS122-1250 - Lightweight Water Jetting Hose, Series SS122

Note: This product is no longer available - please contact us for further assistance

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	70 in stock

SKU SS122-1250

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1-1/4
Base number	SS122	Media	Water
Minimum Bend Radius	n/a	Minimum Operating Temperature	-40 °C
Cover Material	Styrene Butadiene Rubber (SBR)	Cover Structure	Wrapped
Application	Water Jetting	Hose Reinforcement Material	Mutiple Plies of Textile
Outside Diameter	1.720 inch	Nominal Hose Inside Diameter	32 mm
Weight	0.24 kg/ft	Maximum Operating Pressure	34.5 bar
Inside Diameter	1-1/4 to 4 inch	Cover Color	Black
Division	Hose Products Division	Size	-20
Length per Package	100 ft	Hose Inner Tube Material	Styrene Butadiene Rubber (SBR)
Maximum Operating Temperature	180 °F

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
