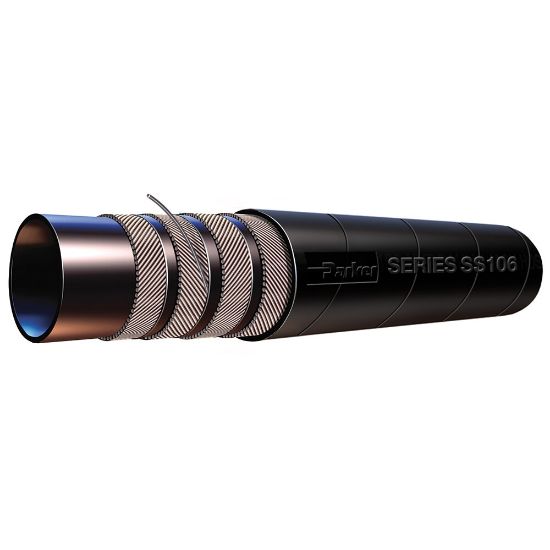

SS106-3000 - Large Diameter Liquid Petroleum Gas LPG Hose, Series SS106

Large Diameter Liquid Petroleum Gas LPG Hose is designed for bulk/high volume supply and transfer of propane in applications to 140°F and 350 psi, Series SS106

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 23 days
Partner Available:	100 in stock

SKU SS106-3000

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3
Cover Color	Black	Length per Package	100 ft
Division	Hose Products Division	Maximum Operating Temperature	82 °C
Hose Inner Tube Material	Black	Media	Propane
Minimum Operating Temperature	-40 °C	Cover Structure	Wrapped
Minimum Bend Radius	n/a	Cover Material	Nitrile
Hose Reinforcement Material	4 Plies of Textile with Static Wire	Application	Liquefied Petroleum Gas (LPG)
Specifications Met	ISO 2928 (E)	Package Type	Coil
Outside Diameter	3.740 inch	Maximum Operating Pressure	24.1 bar
Inside Diameter	3 inch	Weight	2.53 lb

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
