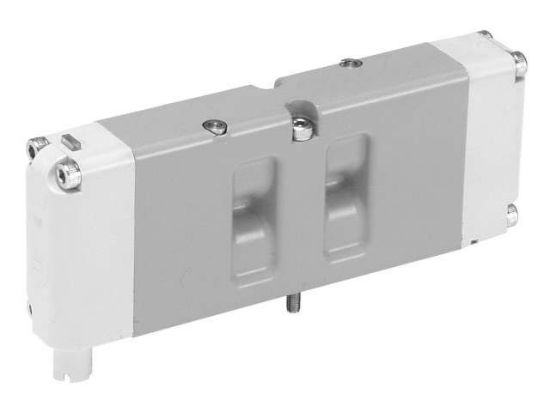

HB5VXBG023A - Isys ISO HB Series Double Solenoid 4-way 3-position Valve

Isys ISO HB Series Double Solenoid 4-way 3-position Valve

Availability:	Backordered Estimated Lead Time: 19 days
Partner Available:	8 in stock

SKU HB5VXBG023A

$177.46/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Solenoid Voltage	120 VAC
UOM	EA	Offset Return Type	Spring Return
CV Factor	0.55	Center Condition	All Ports Blocked
Pilot Supply	Internal	Operator Type Detail	Double
Override Type	Non-locking	Pkg Qty	1
Parker Division	Pneumatic	Trade Name	Isys
Series Type	HB	Valve Passages	4-way
Override Type	Non-locking	Series	Isys
ISO Interface	ISO 15407-2, Plug-in, Size 18mm (HB)	Operator Type	Solenoid
Operator Type Detail	Double	Pneumatic Valve Type	Plug-in Valve
Offset Return Type	Spring Return	Valve Positions	3-position
Solenoid Voltage	120 VAC	Parker Group	Automation
CV Factor	0.55	Pilot Supply	Internal
Center Condition	All Ports Blocked
