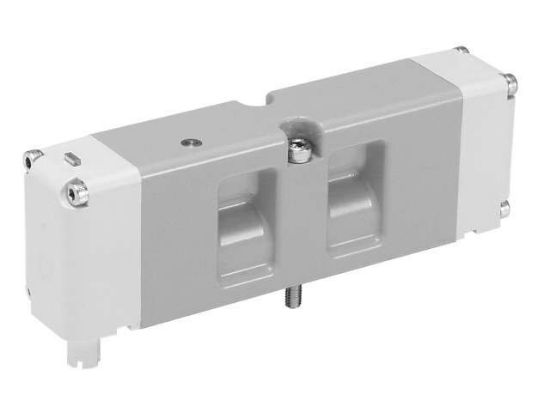

HA6VXLG0G9A - Isys ISO HA Series Double Solenoid 4-way 3-position Valve

Isys ISO HA Series Double Solenoid 4-way 3-position Valve

Availability:	Backordered
Partner Available:	Backordered

SKU HA6VXLG0G9A

$158.60/each

Products specifications

Attribute name	Attribute value
UOM	EA	CV Factor	1
Center Condition	Center Exhaust	Pilot Supply	External
Operator Type Detail	Double	Pkg Qty	1
Override Type	Non-locking	Offset Return Type	Spring Return
UOM	EA	Solenoid Voltage	24 VDC
Override Type	Non-locking	Solenoid Voltage	24 VDC
ISO Interface	ISO 15407-2, Plug-in, Size 26mm (HA)	Series	Isys
Operator Type Detail	Double	Center Condition	Center Exhaust
Operator Type	Solenoid	Valve Positions	3-position
Pneumatic Valve Type	Plug-in Valve	Offset Return Type	Spring Return
Series Type	HA	Parker Group	Automation
Pilot Supply	External	Trade Name	Isys
CV Factor	1	Valve Passages	4-way
Parker Division	Pneumatic
